New STAR SR-10J | Swiss Type Automatic Screw Machines

479-636-1884
parts@techmach.net
ConditionNew

Overview

Type:
Swiss Type Automatic Screw Machines
Manufacturer:
STAR
Model:
SR-10J
Condition:
Build To Order
Status:
For Sale

Description

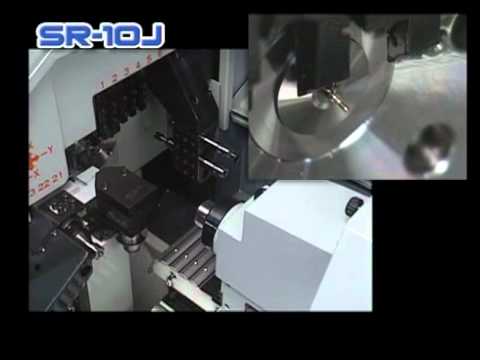

The newly improved Star SR-10J model has enhanced secondary machining capability and operability with C-axis control on both the main and sub spindles. This high performance machine was designed with advanced features for machining small parts with its high spindle speed (15,000 RPM) and rapid traverse with 3-spindle drilling unit for secondary machining. The dynamic and efficient design of this machine allows for close cutting position to the guide bush which achieves accuracy for small parts machining.

Spindle Hole Dia10 mm0.3937"
Power3.7 kW5 hp
RPM15,000 RPM15,000 RPM
# Axis88
Dimensions1865 X 775 X1695mm1865 X 775 X1695mm
Weight1400 (KGS)1400 (KGS)
