New STARRAG ECOSPEED F 2035 | Horizontal Machining Centers

479-636-1884
parts@techmach.net
ConditionNew

Overview

Type:
Horizontal Machining Centers
Manufacturer:
STARRAG
Model:
ECOSPEED F 2035
Condition:
Build To Order
Status:
For Sale

Description

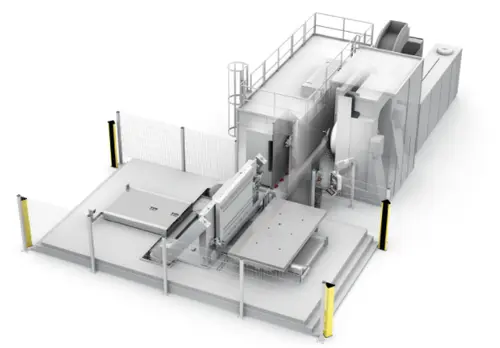

Scharmann has developed the ECOSPEED F for high-speed machining of mediumsized aluminium structural components. The horizontal spindle arrangement, the vertical pallet arrangement and the Sprint Z3 parallel kinematic machining head, which delivers high travel speeds (50 m/min) and accelerations (9.81 m/s²), all come from the successful ECOSPEED.

X3,800 mm149.61"
Y2,500 mm98.425"
Z670 mm26.378"
Power120 kW160.9 hp
RPM30,000 RPM30,000 RPM
# ATC129129
TaperHSK A63/80HSK A63/80
Pallet-W2,000 mm78.74"
Pallet-L3,500 mm137.8"
# Axis55
