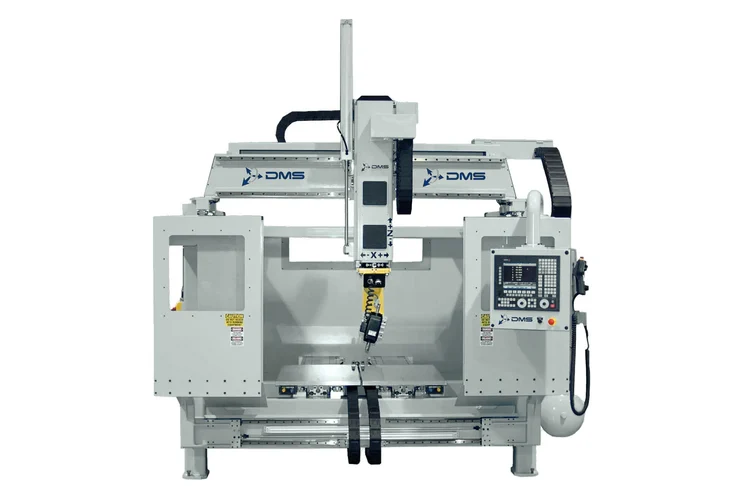

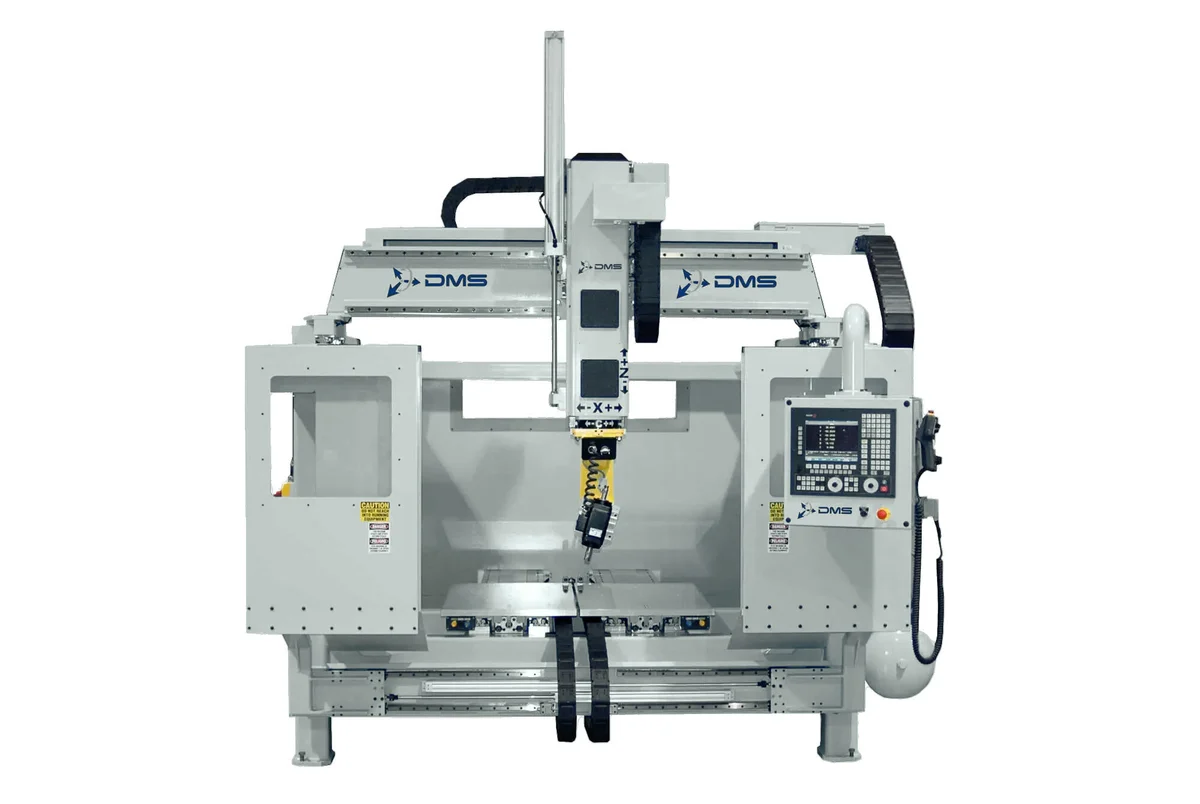

This CNC router is a perfect mid-range “Trim Center” style machine that can be used to process a wide range of applications, from light materials such as wood and foam to composites and ferrous and non-ferrous metals. This machining center is the ideal choice for companies looking for a high-precision 5-axis CNC router without the large footprint. The 5 -axis overhead gantry will help you expand your production capabilities with its efficient, compact design, ideal for dust containment, and its exclusive quick -change fixture system.
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5′
Y: 4′
Z: 750 (30″)
B: (+/-) 115° / 130°
C: +/- 363°
Operating Units and Spindles
Max Power: 11kw
Max rpm: 24,000
Spindles Range (min-max kW): 5-11kw
Units Range: Titl J Plus, DMS Compact Yoke
Specifications
Transmission type: Spinning Ball Nut & Recirculating Ball Screw
Feedback encoders: N/A
Motor Encoders: All Absolute
Machine Envelope (Table Size): 5’x4′, 4’x3′
HMI + NCs: Fagor+ Fagor
Dynamic Performances
Avg Speed (average 3 axis) inch/min: 1400
Avg Acceleration inch/min2 : NA
Max Accuracy: .0025″-.005″
Toolchanger Max Capacity
type: Rack- Man
max tot: 10
