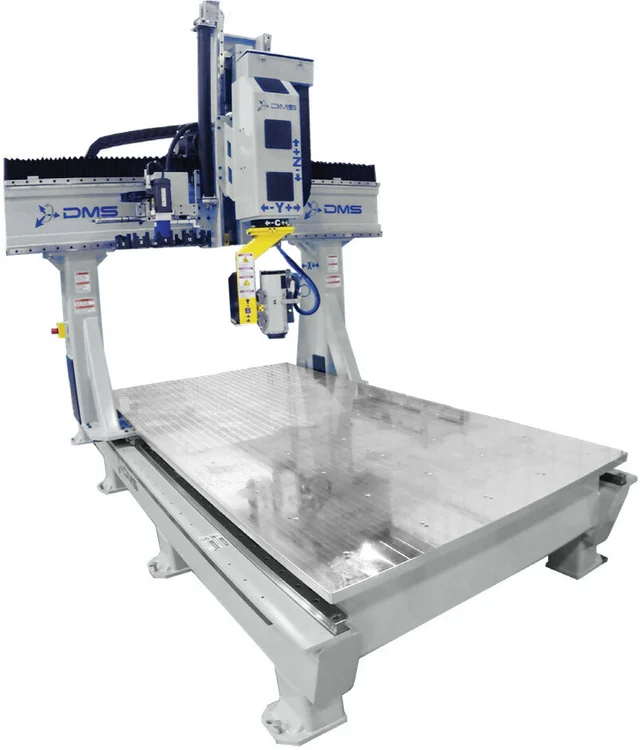

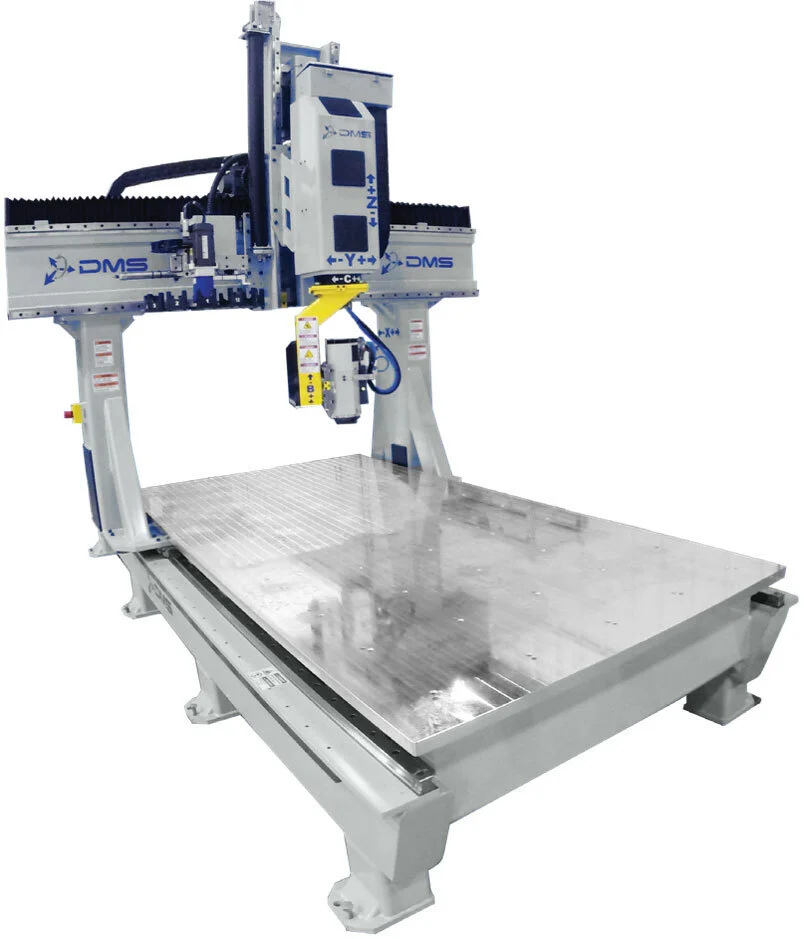

New DMS Redwood5 | 5-Axis CNC Routers
ConditionNew
New
Discover unparalleled precision with DMS’s Redwood5, the 5-Axis CNC Machine designed for excellence. Engineered for diverse material processing needs across industries, Redwood combines high-speed performance with unmatched accuracy. Its robust open architecture design ensures durability for continuous operation, while flexible customization options cater to your specific production needs. Experience the confidence of investing in technology that grows with you, backed by comprehensive support and warranty services. Elevate your manufacturing capabilities with Redwood5.
• Versatility in Materials: Handles a wide range of materials, from lightweight to heavy-duty.
• High Precision and Speed: Enhanced by dual helical rack and pinion drive.
• Production environment: designed for heavy-duty cycles within a production environment. 24-hour round-the-clock operation.
• Customization Options: Tailored solutions to meet specific production needs.
• Professional Support and Warranty: Comprehensive assistance and protection for peace of mind.
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5’/20′
Y: 5’/100′
Z: 914 (36″) -48+72
B: (+/-) 115° / 130°
C:DMS: (+/-) 363° (opt. Continuous)
- Hiteco: (+/-) 320°
Operating Units and Spindles
Max Power: 20kw
Max rpm: 24,000
Spindles Range (min-max kW): 8-20kw
Units Range: Tilt K Plus, Tilt H Plus, Tilt V, Tilt W, DMS Standard Yoke, DMS Cast Yokes
Specifications
Transmission type: Rack & Pinion
Feedback encoders: Scales available as option
Motor Encoders: All Absolute
*Exception = Rotaries are incremental w/ Continuous C option
Machine Envelope (Table Size):
- Bridge Stroke: 5′, 8′, 10′, 12′
- Depth: multiples of 5′ up to 100′, 12′, 22′
HMI + NCs: Fagor+ Fagor
Dynamic Performances
Avg Speed (average 3 axis) inch/min: 1333
Avg Acceleration inch/min2: 60
Max Accuracy: .002″-.005″
Toolchanger Max Capacity
type: Rack-Carousel-Man
max tot: 12/24
