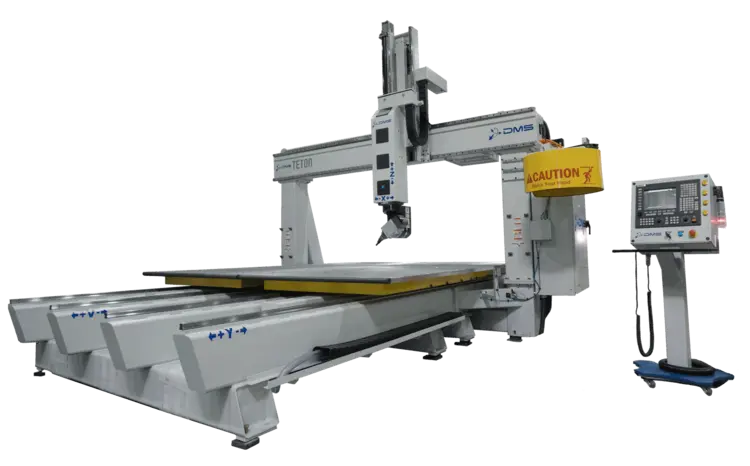

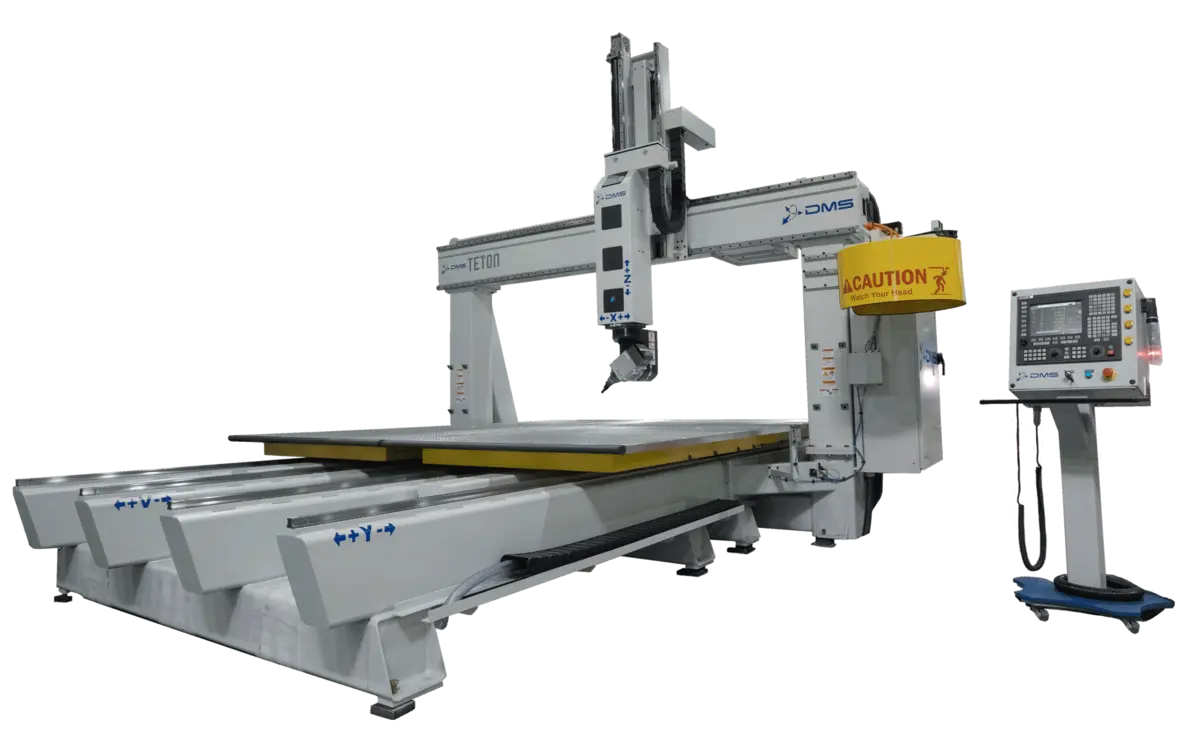

New DMS Teton5 | 5-Axis CNC Routers
ConditionNew
New
The Teton5, with its advanced 5-axis CNC capabilities, now boasts enhanced efficiency through pendulum processing, allowing for continuous operation and minimized downtime. This feature is perfect for high-volume production environments where maximizing machine utilization is key. The fixed gantry offers unmatched rigidity in High-Z applications which ensures that the Teton5 remains at the forefront of precision and flexibility, catering to industries that demand the highest standards of accuracy and efficiency.
• 5-Axis Precision: For complex and intricate designs.
• Pendulum Processing: Enhances efficiency and reduces downtime.
• Versatile Material Handling: Suitable for a wide range of materials.
• Advanced Technology: Ensures high performance and reliability.
• Dedicated Support: Comprehensive service and warranty options.
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5’/12′
Y: 5’/12′
Z: 914 (36″)/1220 (48″)
B: (+/-) 115° / 130°
C: DMS: (+/-) 363° (opt. Continuous)
- Hiteco: (+/-) 320°
Operating Units and Spindles
Max Power: 13kw
Max rpm: 24,000
Spindles Range (min-max kW):8-13kw
Units Range: Tilt K Plus, Tilt H Plus, DMS Standard Yoke, DMS Cast Yokes
Specifications
Transmission type: Spinning Ball Nut & Recirculating Ball Screw
Feedback encoders: Scales available as option
Motor Encoders: All Absolute
*Exception = Rotaries are incremental w/ Continuous C option
Machine Envelope (Table Size): Single Table: 5’x5′, 5’x10′, 10’x5′, 5’x12′, 12’x5′, 6’x12′ or Twin Table: 5’x5′ 5’x10′, 5’x12′, 6’x5′
HMI + NCs: Fagor+ Fagor
Dynamic Performances
Avg Speed (average 3 axis) inch/min: 1333
Avg Acceleration inch/min2: 60
Max Accuracy: .002″-.005″
Toolchanger Max Capacity
type: Carousel-Man
max tot: 12/24
