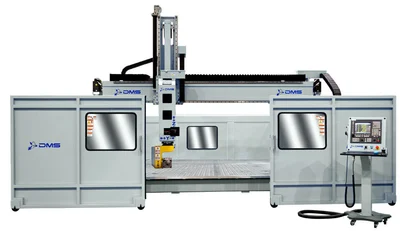

This 5-Axis Large Format Overhead Gantry CNC Machine is a continuous-use, heavy duty machine that is feature rich, and can be used to process a wide variety of applications ranging from foam to aluminum. This machine can be manufactured with a universal fixture table, which can perform multiple tasks without requiring the user to stop production.
The design of this machine allows for easy loading/unloading of large materials, as the front doors slide open and close. The universal fixture table gives your business the option to improve productivity by reducing downtime between part runs. This machine features an all steel frame, which is stress relieved and welded in-house to ensure the highest quality.
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 5’/20′
Y: 5’/40′
Z: 1220 (48″)/1830 (72″)
B: (+/-) 115° / 130°
C: DMS: (+/-) 363° (opt. Continuous)
- Hiteco: (+/-) 320°
Operating Units and Spindles
Max Power: 20kw
Max rpm: 24,000
Spindles Range (min-max kW): 12-20kw
Units Range: Tilt K Plus, Tilt H Plus, Tilt V, Tilt W, DMS Standard Yoke, DMS Cast Yokes
Specifications
Transmission type: Rack & Pinion
Feedback encoders: Scales available as option
Motor Encoders: All Absolute
*Exception = Rotaries are incremental w/ Continuous C option
Machine Envelope (Table Size)
- Bridge Stroke: 5′, 8′, 10′, 12′, 15′
- Depth: multiples of 5′ up to 100′, 12′, 22′
HMI + NCs: Fagor+ Fagor
Dynamic Performances
Avg Speed (average 3 axis) inch/min: 1333
Avg Acceleration inch/min2: 70
Max Accuracy: .002″-.005″
Toolchanger Max Capacity
type: Rack-Man
max tot: 10/12/18
