Professional-Grade CNC Performance for Shops and Workshops

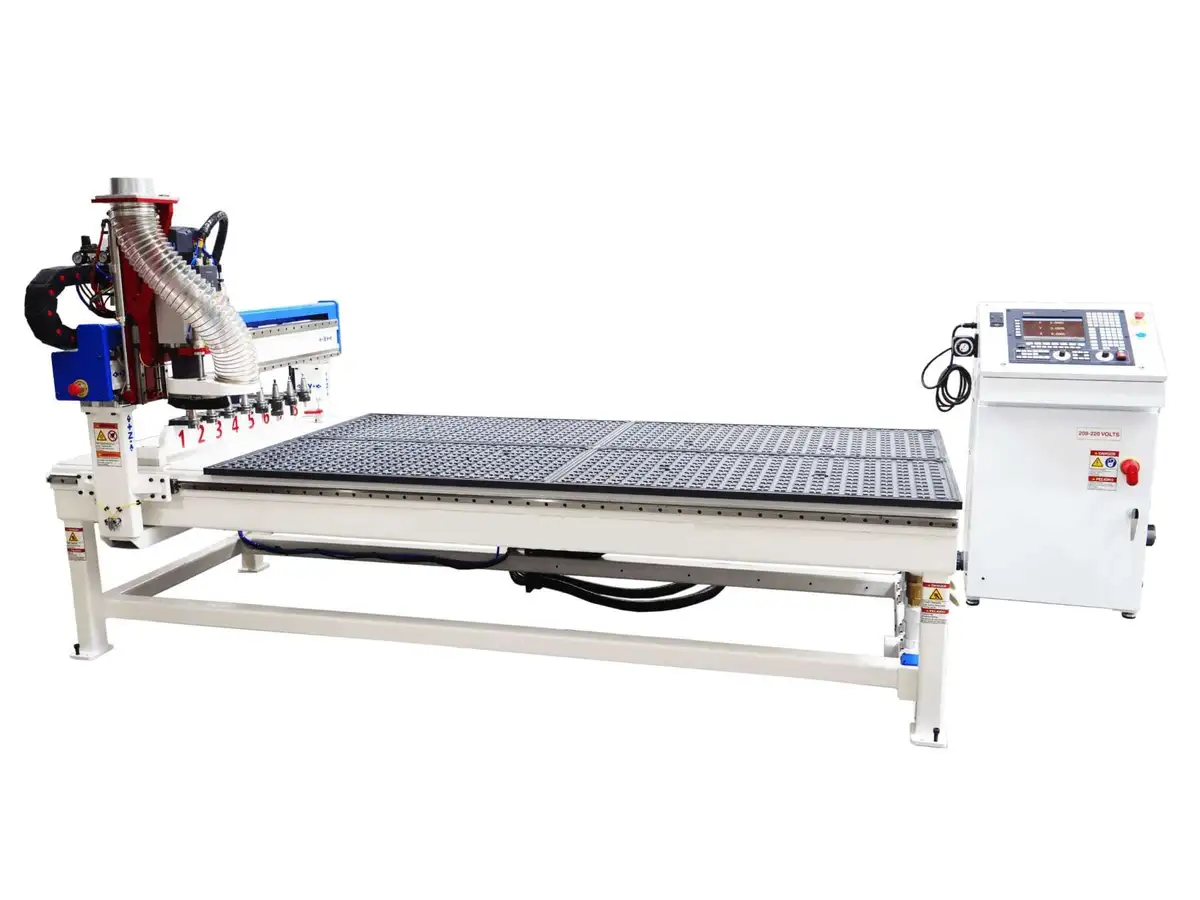

The Freedom 8 CNC Router by Diversified Machine Systems (DMS) is a powerful and reliable 3-axis CNC machine designed for both industrial manufacturing and advanced home workshops. With a generous 48″ x 96″ cutting area and 12″ of Z-axis travel, this router is ideal for processing full sheets of wood, plastic, composite panels, and even light aluminum.
Built with a rigid steel frame, high-speed ball screw drives, and precision-calibrated axes, the Freedom 8 excels in nested-based manufacturing, 3D carving, sign making, panel processing, and custom fabrication. Whether you’re operating a production shop or an expert-level garage workspace, the Freedom 8 gives you the same performance trusted by professionals across industries.
Standard lead time: approximately 14 weeks
Key Advantages
• Industrial 3-axis CNC router with optional C-axis upgrade
• Fagor 8070 OL control system with a 17″ color LCD display
• Moving gantry design for maximum material access and throughput
• Precision ball screw drive on all axes ensures accurate, repeatable cuts
• High-torque Fagor AC servo motors & amplifiers for smooth motion
• Standard 4’x8’ phenolic table (upgradeable to aluminum)
• Dust collection hood compatible with 5″ lines from customer’s system
• Optional Becker vacuum pump systems (5, 10, or 15 HP)
• Hiteco 10 HP electro spindle standard (other power options available)
• Multiple connectivity options: Ethernet, USB, and Serial ports
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 48″
Y: 96″
Z: 12″
C: C-Axis optional
Operating Units and Spindles
Max Power (S1 / S6): 13kW/ 15kW
Max rpm: 24000
Spindles Range (min-max kW)(S1): 4.5-13kW
Units Range: Hiteco MT200, MT201, PT300, PT400
Specifications
Transmission type: Spinning Ball Nut & Recirculating Ball Screw
Feedback encoders: 4’x8′
Motor Encoders: Rack-Man
Machine Envelope (Table Size): 10
HMI + NCs: Fagor+ Fagor
