Heavy-Duty CNC Performance for Large-Format Production

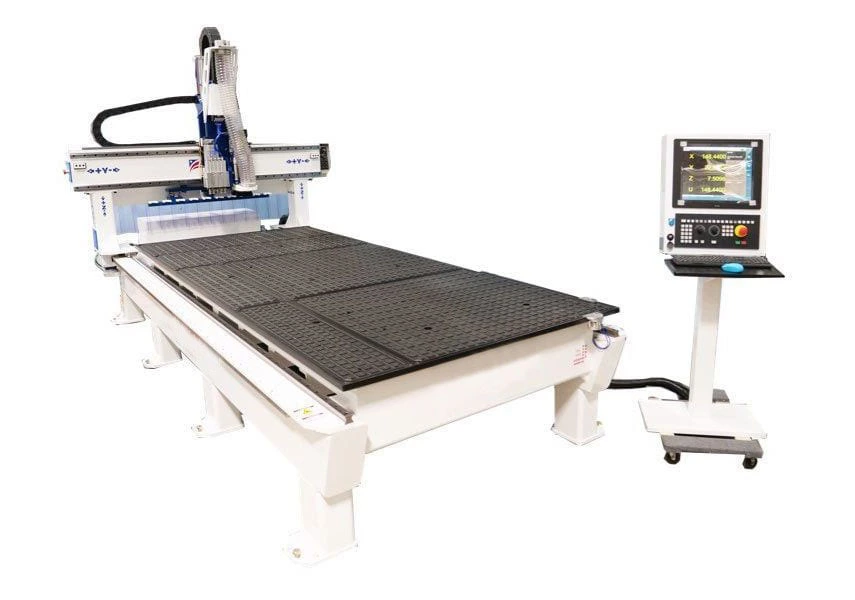

The Freedom 12 CNC Router by Diversified Machine Systems (DMS) is a high-performance, large-format solution engineered for industrial operations that require speed, precision, and serious cutting power. With a generous 5’ x 12’ aluminum table, 12″ of Z-axis travel, and a powerful Hiteco ATC spindle, this 3-axis moving gantry machine is optimized for high-volume nested-based manufacturing, custom cabinetry, and composite panel processing.
Equipped with an automatic tool changer, drill bank, pneumatic pop-up pins, and a dust collection-ready hood, the Freedom 12 is built to streamline your workflow and reduce setup time—making it a standout choice for shops processing large sheets of wood, aluminum, plastic, and composites at scale.
Standard lead time: approximately 14 weeks. Contact DMS for pricing and configuration options.
Key Advantages
• 3-axis industrial CNC router with moving gantry design
• Fagor 8070 OL controller with 17” LCD screen
• Ball screw drive and laser-calibrated X/Y axes
• 5’x12’ machined aluminum table with steel threaded inserts
• Hiteco PowerTech 300 ATC spindle (10.5 HP S1 / 12.5 HP S6)
• 10-position automatic tool change rack
• 5+4 drill bank (1.7kW, 6,000 RPM) on fixed plate
• Pneumatic pop-up pins for easy material referencing
• HSK-63F 10-piece tooling package included
• Dust collection hood supports 5” line
• Optional Becker vacuum pump (5, 10, or 15 HP)
• Ethernet, USB & Serial connectivity
Min – Max Axes Strokes * DMS standard configuration: X axis = Bridge axis
X: 60″
Y: 144″
Z: 12″
C: C-Axis optional
Operating Units and Spindles
Max Power (S1 / S6): 8kw
Max rpm: 24,000
Spindles Range (min-max kW)(S1): 8kw
Units Range: Hiteco PT300, PT400
Specifications
Transmission type: Rack & Pinion
Feedback encoders: 5’x12′
Motor Encoders: Rack-Man
Machine Envelope (Table Size): 12
HMI + NCs: Fagor+ Fagor
