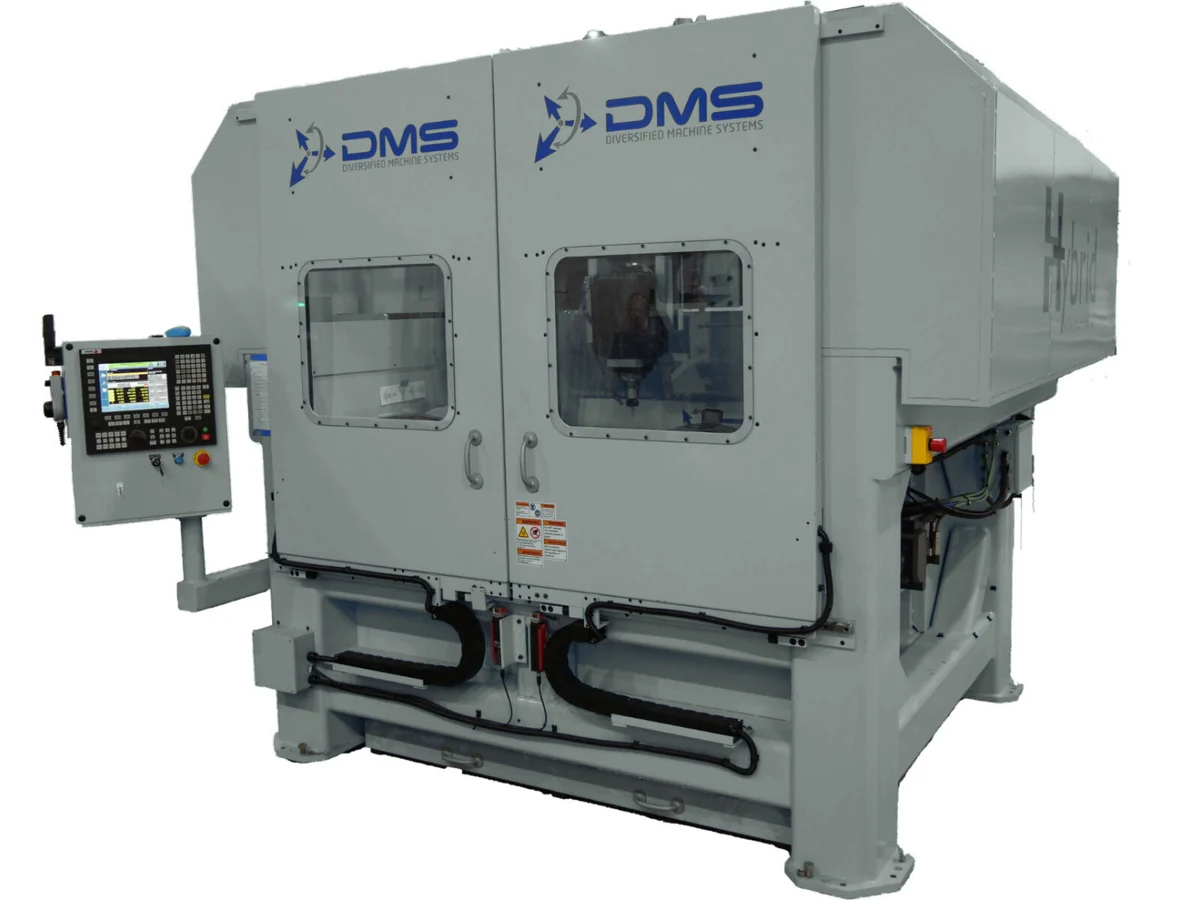

New DMS Hybrid Liberty | 5-Axis Machining Centers
ConditionNew
New
Our Hybrid Liberty machine series are 5-axis machines designed to expand our capabilities to include harder materials including various steel and stainless steel alloys. These machines all feature tilt rotate tables to increase the complexity and types of parts that can be produced. We offer two different machine sizes in this line, with a 600 or 1200mm diameter table.
Base Features
• Electrically isolated liquid cooled aluminum table with 3/8” threaded inserts on 6” centers
• Tool height setter to automatically measure and store tool length in CNC
• 4 position automatic tool change rack
• Fully enclosed work area
• Welding fume extraction system
Optional Features
• Spindle mounted touch probe
Support
• Software Options Support
• Complimentary Technical Support
• Professional installation & training available
• Warranty – 1 Year limited warranty and basic phone support
• Parts Warranty
Available with a 600 or 1200mm table
Feedstock: Configured for .047” (1.2mm) diameter commercially available solid wire
Materials: Various Aluminum, Steel and Stainless steel alloys
Deposition Rate: up to 3 lbs/hr (with aluminum)
Spindle: HSD 25 kW Liquid cooled 20000 RPM
Machine Frame: Heavy duty steel fabricated
Axis Motion: Precision ball screws and linear rail used all axes
Servo & Drive System: Fagor closed-loop brushless AC servo motors and servo amplifiers on all axes
Controller: Fagor 8065 Q7a
