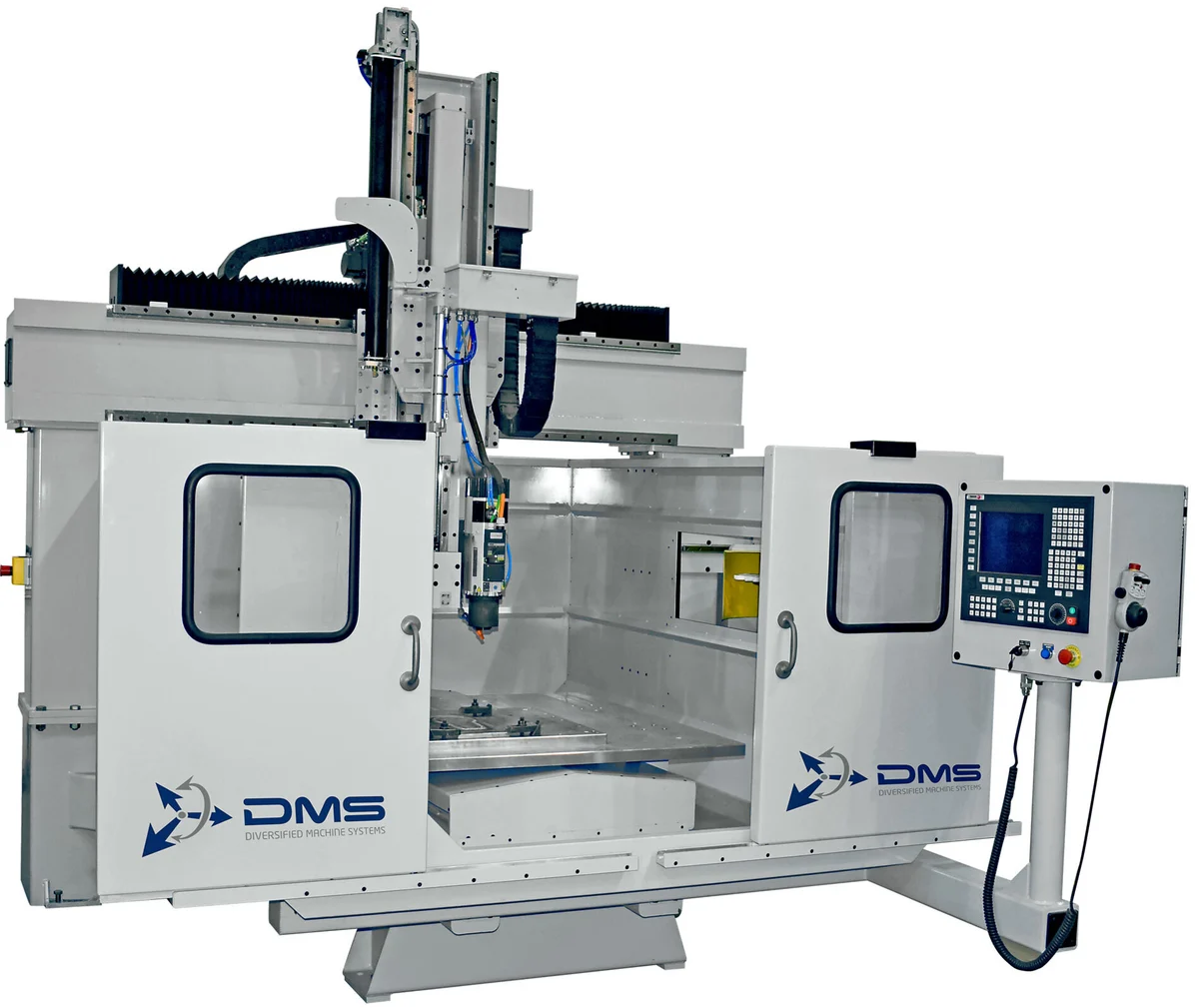

New DMS Hybrid Custom Series | 5-Axis Machining Centers
ConditionNew
New
We can custom build a hybrid machine for your specific application or process. The hybrid technology can be integrated into any of our 3 or 5-axis router designs.
Base Features
• Spindle selected for your application
• Fully enclosed work area

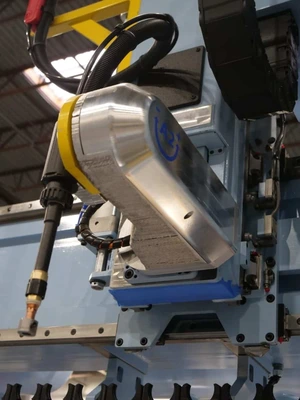

• 3 axis deposition head
Optional Features
• Spindle mounted touch probe
• Welding fume extraction system
• Tool height setter to automatically measure and store tool length in CNC
• Automatic tool change rack
• Liquid cooled table
• 5-axis deposition head to allow for more complex part geometries
Support
• Complimentary Technical Support
• Professional installation & training available
• Warranty – 1 Year limited warranty and basic phone support
• Parts Warranty
Feedstock: Configured for .047” (1.2mm) diameter commercially available solid wire.
Materials: Various Aluminum, Steel and Stainless steel alloys.
Deposition Rate: up to 3 lbs/hr (with aluminum)
Machine Frame: Heavy duty steel fabricated
Servo & Drive System: Fagor closed-loop brushless AC servo motors and servo amplifiers on all axes
Controller: Fagor 8065 Q7a
