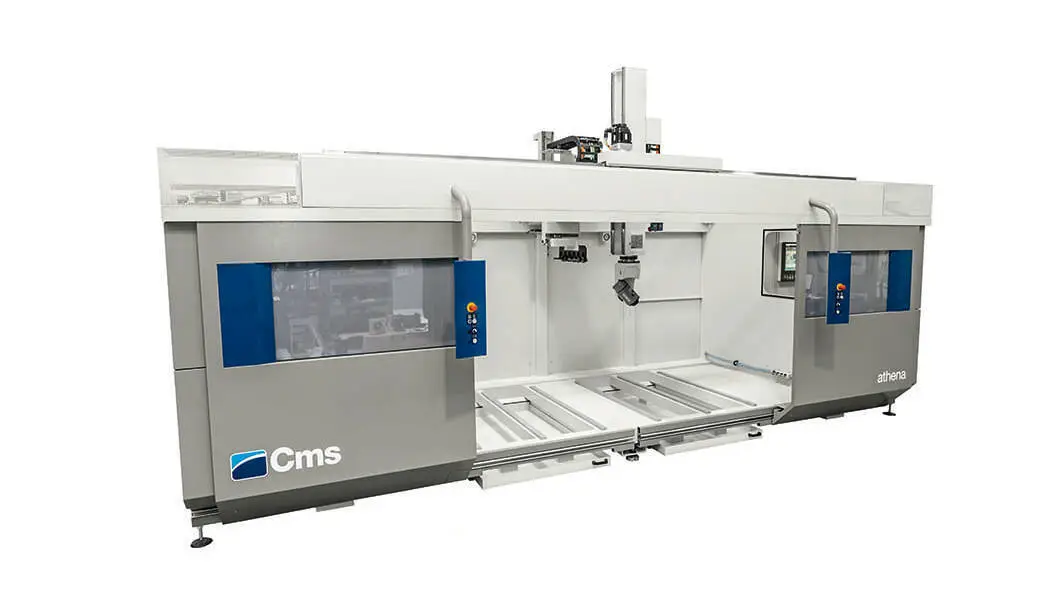

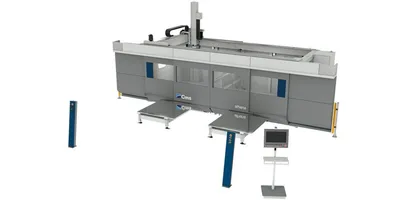

Movable-bridge Movable-bridge machining center specifically designed for high speed processing of plastic and composite materials, providing exceptional motion dynamics to ensure high productivity. The advanced structural design avoids machining vibration and achives excellent finishing quality:
• very large working areas for the maximum production freedom

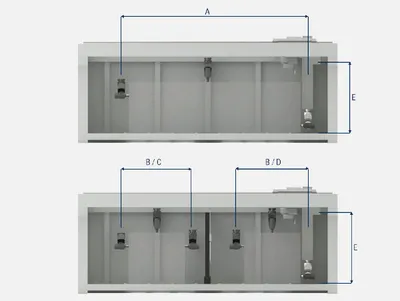

• broad variety of working areas (single zone or tandem cycle)
• the compact design enables handling and transport without removing any mechanical part, ensuring reduced time for machine restarting
• Smart4Cut programming system is dedicated to the optimization of the trimming path. Interactive software, a portable keypad with joystick and touch screen provide the operator the ability to easily manage all the CNC functions. Cutting programs canbe created by starting from the 3d model or directly from the sample piece fitted on the machine,automatically eliminating all unnecessary movements and reducing the cycle time to a
minimum.

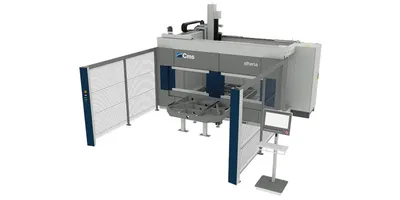

athena is available also with rotating tables (TR) and with removable tables APC (Automatic Pallet Change).
Advantages:
FASTER PROGRAMMING AND CONTOURING

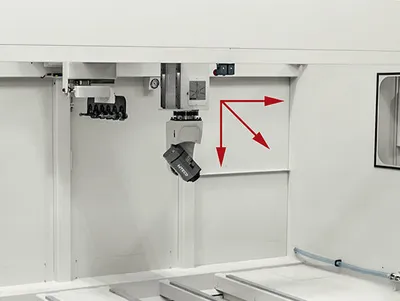

Avoids any repositioning operations thanks to the CX5 operating unit, characterized by the the largest rotary XY axis on the market.
15% reduction in cutting times and programming of contouring cuts
REDUCTION IN CYCLE TIME RESPONSIVENESS AND SPEED WHERE AND WHEN NEEDED
Dedicated dynamics, during both acceleration and braking, for all cutting cycle phases.
13% reduction in comprehensive machining times due to shorter repositioning spaces required between one phase and the next.
OPTIMIZATION AND USE OF WORK VOLUMES WITH NON-CONFIGURABILITY LIMITATIONS
Minimum space taken up and maximum use of factory space in proportion to workable cubic space for all versions. Its compact, hard structure was designed to grip to the working stroke as much as possible. Pendulum processing available with Athena’s vast configurability, extractable (APC) and rotating (TR) tables make it the perfect solution for trimming plastic materials.
CLEANING OF THE WORK TABLE IN ZERO TIME

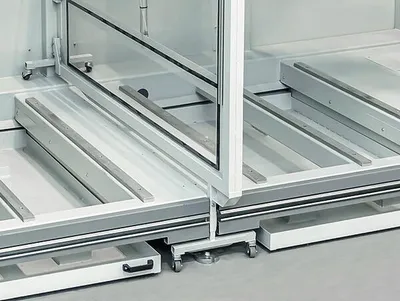

Shavings collection system with frontal extraction wheeled tanks. The removable tanks, even with doors closed, are the most ergonomic, functional and rapid solution for keeping the area clean and efficient.
STROKES AND SPEEDS:
AXES STROKES
X: .... 2370 mm
Y: .... 1500 mm
Z: .... 1200 mm
B: .... ±120°
C: .... ± 360°
RAPID
X: .... 90 m/min
Y: .... 60 m/min
Z: .... 40 m/min
B: .... 10800 °/min
C: .... 10800 °/min

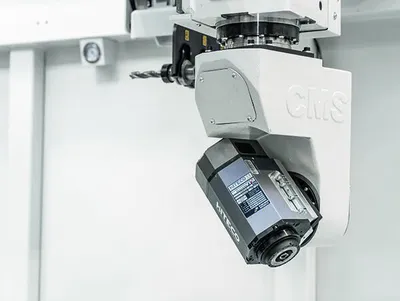

WORKING UNITS AND ELECTROSPINDLES:
MODEL CX5
NOMINAL POWER (S1) .. 8,5 kW
MAX POWER (S6) ...... 10 kW
MAX RPM ............. 24000 rpm
TORQUE (S1) ......... 6,8 Nm
TOOL HOLDER ......... HSK 63F
COOLING ............. Liquid
MODEL CX5 10
NOMINAL POWER (S1) .. 10 kW
MAX POWER (S6) ...... 12 kW
MAX RPM ............. 24000 rpm
TORQUE (S1) ......... 8 Nm
TOOL HOLDER ......... HSK 63F
COOLING ............. Liquid
MODEL CX5 8
NOMINAL POWER (S1) .. 8 kW
MAX POWER (S6) ...... 9 kW
MAX RPM ............. 40000 rpm
TORQUE (S1) ......... 5,2 Nm
TOOL HOLDER ......... HSK 32E
COOLING ............. Liquid
