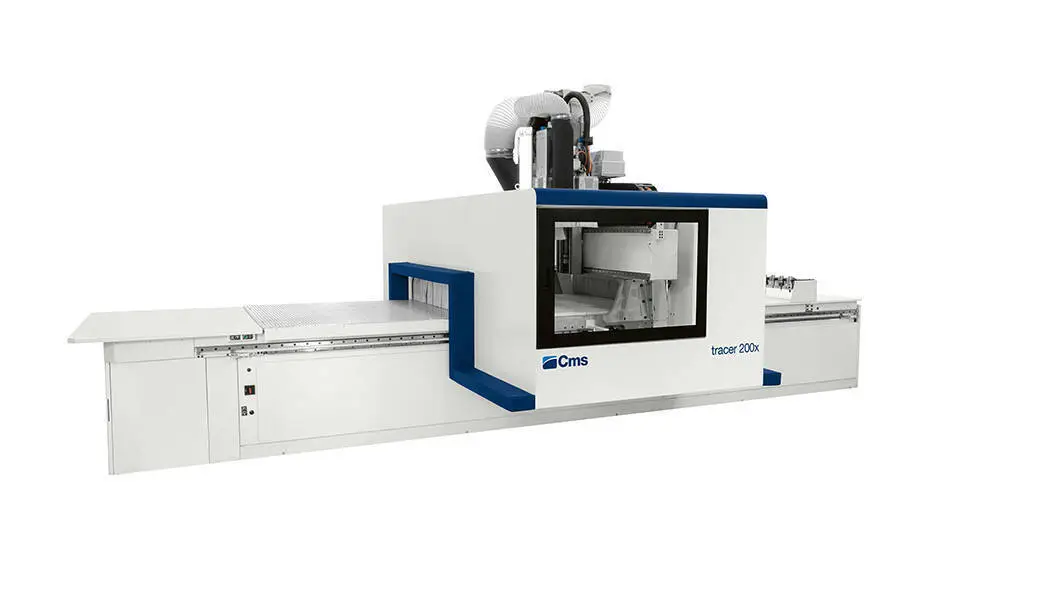

The new generation of 3, 4, 5-axis CNC nesting centres for drilling and routing

Description

The new generation of 3, 4, 5-axis CNC nesting centers for drilling and routing of plastic materials and advanced materials, equipped with technical solutions especially dedicated to the advanced nesting and the technical articles. Models are also available in cell version with both automatic loading and unloading belt.

• best-in-class wide spindle and head range for all machining needs up to 15 kw and 24.000 rpm

• incomparable optimization of encumbrance thanks to the available “pro-speed” and “pro-space” solutions

• worktables with unique vacuum management solutions, thanks to the dynamic X-Vacuum system

Advantages:

NO SHAPE LIMITS AND MAXIMUM VACUUM EFFECT

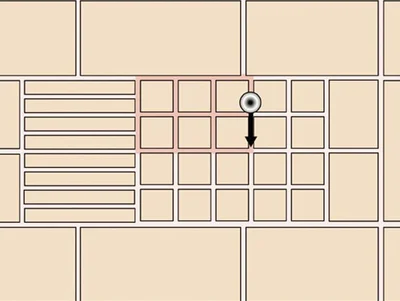

With the X-Vacuum System, the vacuum is concentrated in the worktable area involved in machining. Ideal for machining small parts or very breathable materials without the risk that the workpiece may move.

NESTING AND TECHNICAL PARTS MACHINING WITHOUT COMPROMISE
Everything that is needed to best meet the most diversified needs in plastic materials processing. From nesting to engineering parts without compromise. The best nesting features are embedded in the rigid mobile gantry structure with double gantry motorization able to house 5-axis units with 13.5Kw power.

EVERY SECOND COUNTS

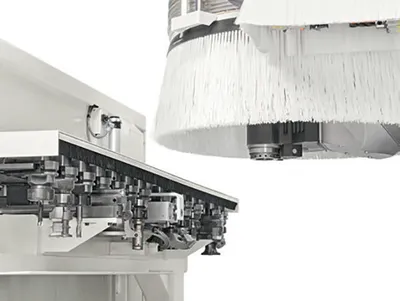

Working cycles on average 9% faster with the 14-station FAST rack magazine inside the mobile cabin.
The tools are always available in front of the operating unit for change cycles in less than 15 seconds.

MINIMUM ENCUMBRANCE MAXIMUM ACCESSIBILITY

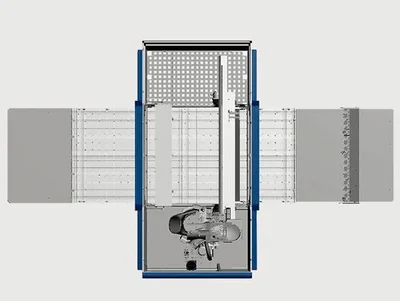

Thanks to the “pro-space” protections the loading area is absolutely unobstructed in order to minimize the space occupied.
The absence of perimeter protections allows access to the work table from all sides of the machining centre with an average saving of 15% of occupied room in the workshop.
