New HALTER Basic Pro 12 | Machine Tending
ConditionNew
New

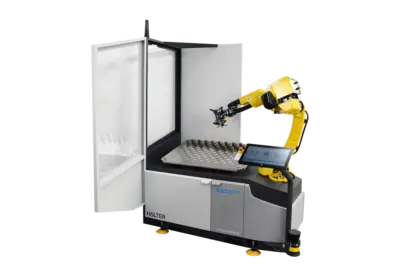

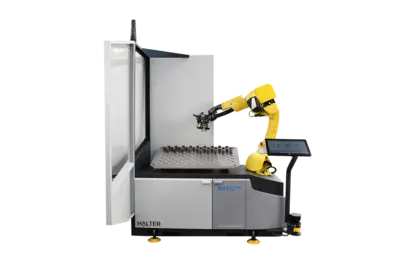

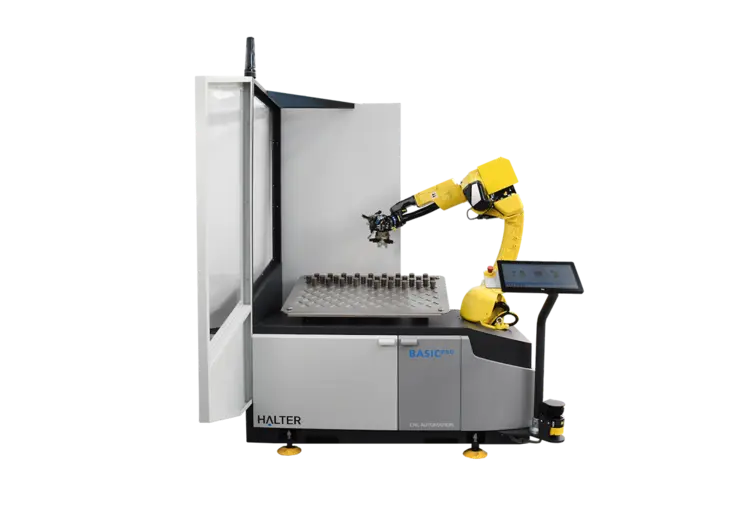

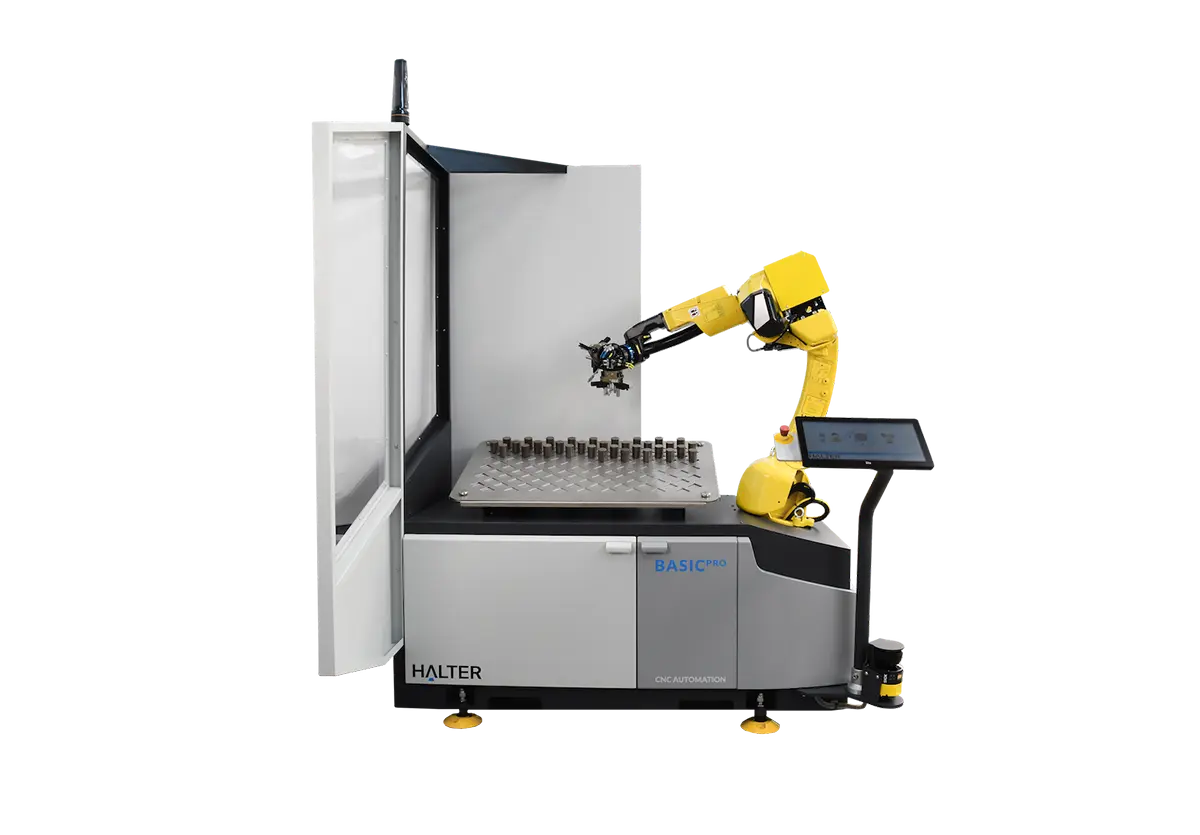

HALTER Basic Pro 12, a new load/unload system, efficiently handles workpieces ranging from 0.39"-5.31" and supports up to 793.66 lbs. Integrated with Fanuc robot tech, it offers versatility for turning/milling and quick setup—all within minimal floor space.
Workpiece diameter (min - max) 0.39" - 5.31"
Minimum workpiece (L x W) 0.39" x 0.39"
Maximum workpiece (L x W) 5.31" x 5.31"
Height of workpiece (min - max) 0.39" - 5.91"
Maximum load capacity robot arm 26.45 lbs
Maximum total weight on table 793.66 lbs
Capicity:
Max. number of workpieces for grid plate 10-20 mm: 188
Max. number of workpieces for grid plate 10-35 mm: 104
Max. number of workpieces for grid plate 10-55 mm: 64
Max. number of workpieces for grid plate 10-85 mm: 38
Max. number of workpieces for grid plate 10-115 mm: 18
Max. number of workpieces for grid plate 10-135 mm: 14
For turning and milling
Maximum diameter 135 mm - maximum dimension LxW 135 mm x 135 mm
Industrial Fanuc robot and high-quality components for a long, reliable service life
New series set-up within 5 minutes
No compromise on safety - with floor scanner and safety zone
Minimum floor space
Industrial technology for the price of a cobot system
