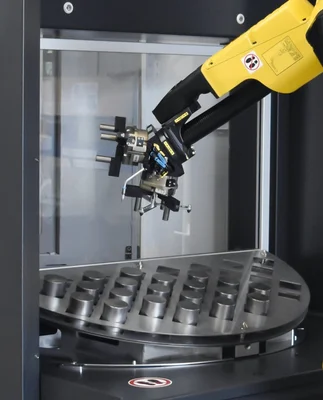

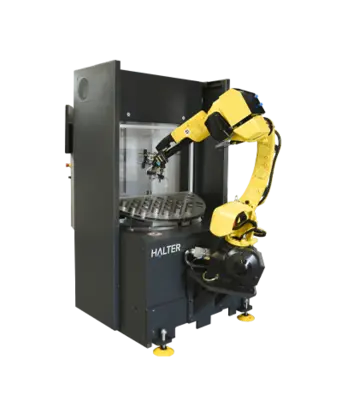

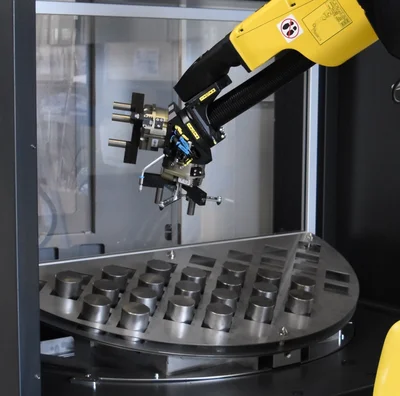

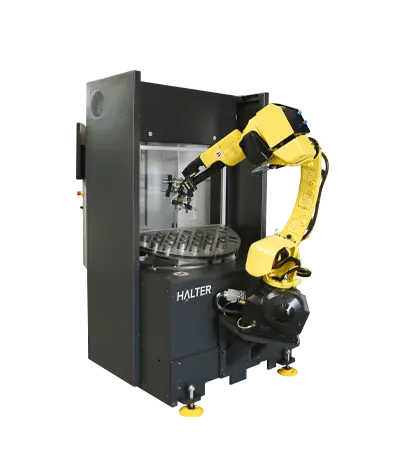

The Universal Compact 12 is a compact loading robot for turning and milling, covering the complete range of workpieces up to 135 mm.
• For turning and milling
• Maximum diameter 135 mm - maximum dimension LxW 135 mm x 135 mm
• Axis loading up to 250 mm
• New batch set-up within 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• Minimum floor space
• With a 12 kg robot arm
• Many extra functionalities
CAPACITY:
Workpiece diameter (min - max): ...................... 0.39" - 5.314"
Minimum workpiece (L x W): ........................... 0.39" x 0.39"
Maximum workpiece (L x W): ............................ 5.314" x 5.314"
Height of workpiece (min - max): ..................... 0.39" - 5.91"
Maximum load capacity robot arm: ..................... 26.45 lbs
Maximum total weight on rotating table: .............. 881.8 lbs
Max. number of workpieces for grid plate 10-20 mm: ... 190
Max. number of workpieces for grid plate 10-35 mm: ... 116
Max. number of workpieces for grid plate 23-55 mm: ... 62
Max. number of workpieces for grid plate 23-85 mm: ... 36
Max. number of workpieces for grid plate 23-115 mm: .. 20
Max. number of workpieces for grid plate 23-135 mm: .. 18
Workpiece-specific grid plates: ...................... Option
CAPACITY FOR SHAFT HANDLING:
Workpiece diameter (min - max): ...................... 0.39" - 1.57"
Minimum workpiece (L x W): ........................... 0.39" x 0.39"
Maximum workpiece (L x W): ........................... 1.57" x 1.57"
Height of workpiece (min - max): ..................... 5.91" - 9.84"
Maximum weight of workpiece: ......................... 5.51 lbs
Maximum load capacity robot arm: ..................... 26.45 lbs
Maximum total weight on rotating table: .............. 881.8 lbs
Max. number of workpieces for grid plate 10-20 mm: ... 190
Max. number of workpieces for grid plate 10-35 mm: ... 116
Max. number of workpieces for grid plate 23-55 mm: ... 62
DIMENSIONS:
Length: .............................................. 51.77"
Width: ............................................... 47.24"
Height: .............................................. 79.13"
Total weight: ........................................ 1794 lbs
