HALTER UNIVERSAL PREMIUM 25/35 - Loading robot for turning and milling machines
ConditionNew
New

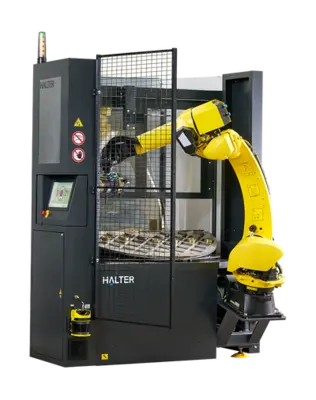

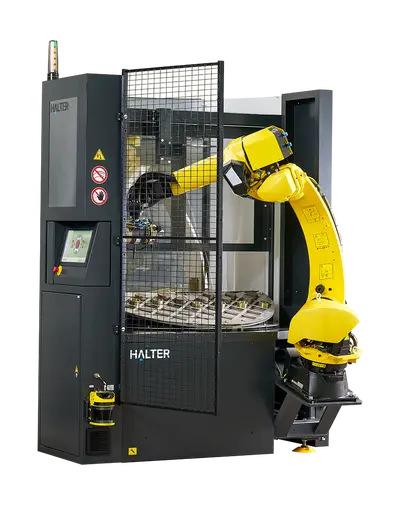

The Universal Premium 25/35 is a loading robot for turning and milling, covering the complete range of workpieces up to 270 mm.
• For turning and milling
• Maximum diameter 270 mm - maximum dimension LxW 270 mm x 270 mm
• Axis loading up to 450 mm
• New series set-up within 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• Minimum floor space
• Easy to move from one CNC machine to another
• With a 25 or 35 kg robotic arm
• Many extra functionalities
CAPACITY:
Workpiece diameter (min - max): ...................... 0.39" - 10.63"
Minimum workpiece (L x W): ........................... 0.39" x 0.39"
Maximum workpiece (L x W): ........................... 10.63" x 10.63"
Height of workpiece (min - max): ..................... 0.39" - 9.84"
Maximum load capacity robot arm: ..................... 55.12 lbs / 77.16 lbs
Maximum total weight on rotating table: .............. 1653 lbs
Max. number of workpieces for grid plate 10-35 mm: ... 176
Max. number of workpieces for grid plate 23-55 mm: ... 136
Max. number of workpieces for grid plate 23-85 mm: ... 68
Max. number of workpieces for grid plate 23-115 mm: .. 40
Max. number of workpieces for grid plate 23-135 mm: .. 24
Max. number of workpieces for grid plate 23-175 mm: .. 18
Max. number of workpieces for grid plate 23-195 mm: .. 14
Max. number of workpieces for grid plate 23-230 mm: .. 10
Max. number of workpieces for grid plate 23-270 mm: .. 6
Workpiece-specific grid plates: ...................... Option

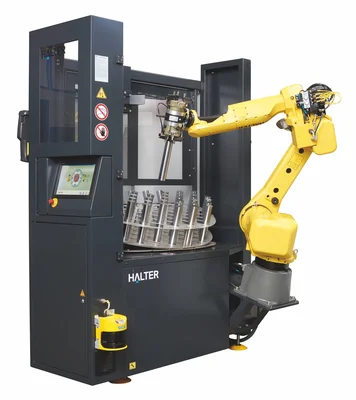

CAPACITY FOR SHAFT HANDLING:
Workpiece diameter (min - max): ....................... - / 0.39" - 1.57"
Minimum workpiece (L x W): ............................ - / 0.39" x 0.39"
Maximum workpiece (L x W): ............................ - / 1.57" x 1.57"
Height of workpiece (min - max): ...................... - / 9.84" - 17.71"
Maximum weight of workpiece: .......................... - / 9.92 lbs
Maximum load capacity robot arm: ...................... - / 77.16 lbs
Maximum total weight on rotating table: ............... - / 1653 lbs
Max. number of workpieces for grid plate 10-35 mm: .... - / 160
Max. number of workpieces for grid plate 23-55 mm: .... - / 130
Max. number of workpieces for grid plate 23-85 mm: .... - / 64
DIMENSIONS:
Length: ............................................... 1750 mm
Width: ................................................ 1434 mm
Height: ............................................... 2220 mm
Total weight: ......................................... 1110 kg / 1120 kg
