HALTER UNIVERSAL BIG 35/70 - Loading robot for turning and milling machines
ConditionNew
New

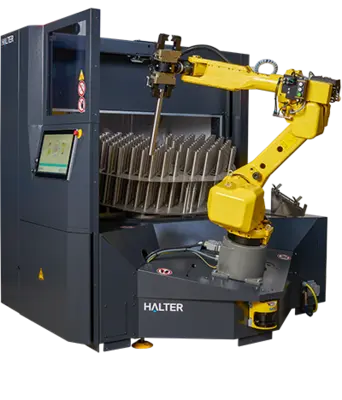

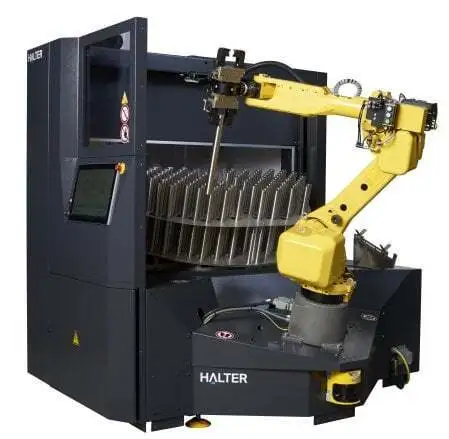

The Universal Big 35/70 is a loading robot for turning and milling and is specially designed for loading heavy workpieces and a large buffer capacity.
• For turning and milling
• Maximum diameter 300 mm - maximum dimension LxW 300 mm x 300 mm
• Shaft loading up to a length of 600 mm standard and up to 1000 mm optional
• Set-up time of less than 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• With a 35 or 70 kg robotarm
• Many extra functionalities
CAPACITY:
Workpiece diameter (min - max): ...................... 0.39" - 11.81"
Minimum workpiece (L x W): ........................... 0.39" x 0.39"
Maximum workpiece (L x W): ........................... 11.81" x 11.81"
Height of workpiece (min - max): ..................... 0.39" - 11.81"
Maximum load capacity robot arm: ..................... 77.16 lbs / 154.32 lbs
Maximum total weight on rotating table: .............. 6613 lbs
Max. number of workpieces for grid plate 10-35 mm: ... 320
Max. number of workpieces for grid plate 23-55 mm: ... 206
Max. number of workpieces for grid plate 23-85 mm: ... 112
Max. number of workpieces for grid plate 23-115 mm: .. 66
Max. number of workpieces for grid plate 23-135 mm: .. 52
Max. number of workpieces for grid plate 23-175 mm: .. 28
Max. number of workpieces for grid plate 23-195 mm: .. 24
Max. number of workpieces for grid plate 23-230 mm: .. 18
Max. number of workpieces for grid plate 23-300 mm: .. 10
Workpiece-specific grid plates: ...................... Option
CAPACITY FOR SHAFT HANDLING:
Workpiece diameter (min - max): ...................... 0.39" - 1.57" / 0.39" - 3.14"
Minimum workpiece (L x W): ........................... 0.39" x 0.39"
Maximum workpiece (L x W): ........................... 1.57" x 1.57" / 3.14" x 3.14"
Height of workpiece: ................................. 11.81" - 17.71" / 11.81" - 23.62"
Maximum weight of workpiece: ......................... 9.92 lbs / 52.91 lbs
Maximum load capacity robot arm: ..................... 77.16 lbs / 154.32 lbs
Maximum total weight on rotating table: .............. 6613 lbs
Max. number of workpieces for grid plate 10-35 mm: ... 320
Max. number of workpieces for grid plate 23-55 mm: ... 206
Max. number of workpieces for grid plate 23-85 mm: ... 112
DIMENSIONS:
Length: .............................................. 110.23"
Width: ............................................... 88.58"
Height: .............................................. 87.4"
Total weight: ........................................ 5489 lbs / 6172 lbs
