HALTER TURNSTACKER COMPACT 12 - Compact loading robot with stacking function for lathes
ConditionNew
New

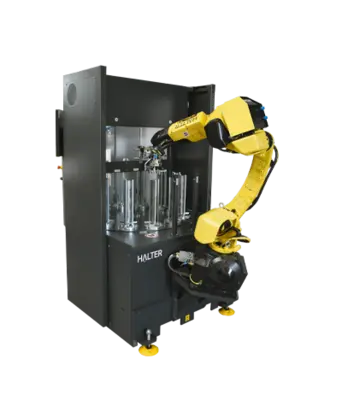

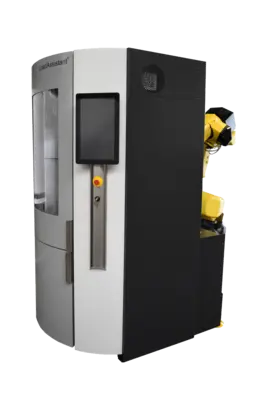

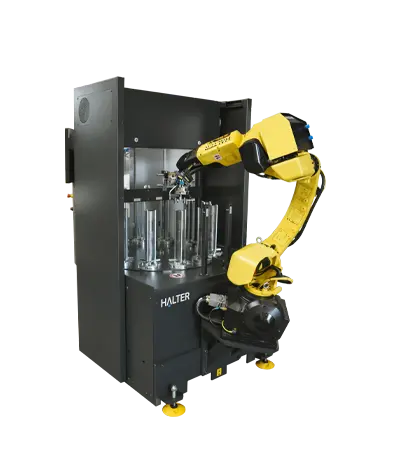

The TurnStacker Compact 12 is a loading robot for turning with a high buffer capacity for workpieces up to 160 mm in diameter.
• For turning
• Maximum diameter 160 mm
• High buffer capacity through stacking function
• Set-up time of less than 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• Minimum floor space
• With a 12 kg robotarm
• Many extra functionalities
CAPACITY
Workpiece diameter (min - max): ........................... 1.69" - 6.30"
Height of workpiece (min - max): .......................... 0.39" - 6.88"
Maximum load capacity robot arm: .......................... 26.45 lbs
Maximum total weight on rotating table: ................... 1455 lbs
Maximum stacking height: .................................. 13.77"
Number of stacking stations (1 empty): .................... 12
Maximum weight per station: ............................... 132.3 lbs
Max. number of workpieces at workpiece height of 10 mm: ... 407
Max. number of workpieces at workpiece height of 20 mm: ... 198
Max. number of workpieces at workpiece height of 50 mm: ... 77
Max. number of workpieces at workpiece height of 70 mm: ... 55
Max. number of workpieces at workpiece height of 85 mm: ... 44
Max. number of workpieces at workpiece height of 110 mm: .. 33
Max. number of workpieces at workpiece height of 150 mm: .. 22
DIMENSIONS
Length: ................................................... 51.77"
Width: .................................................... 47.24"
Height: ................................................... 79.13"
Total weight: ............................................. 2094 lbs
