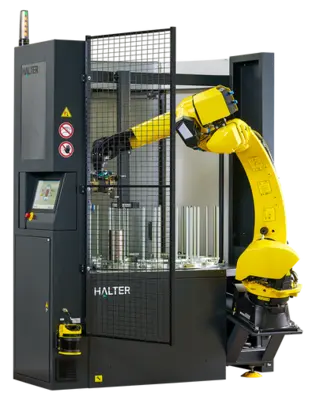

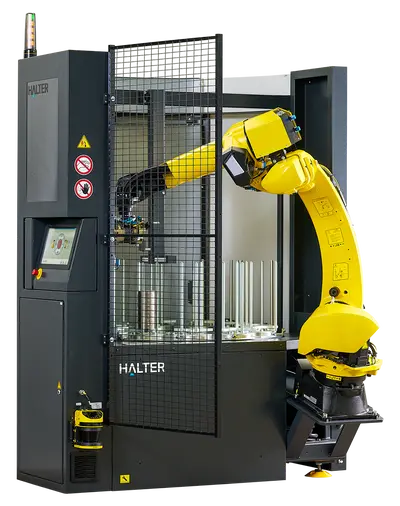

The TurnStacker Premium 25/35 is a loading robot for turning with a high buffer capacity for workpieces up to 230 mm in diameter.
• For turning
• Maximum diameter 230 mm

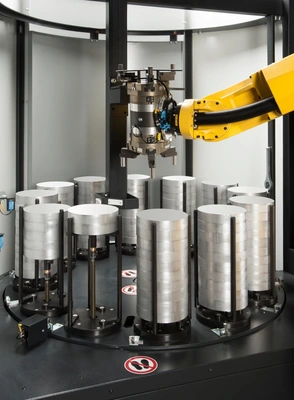

• High buffer capacity through stacking function
• Set-up time of less than 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• Minimum floor space
• With a 25 or 35 kg robotarm
• Many extra functionalities
CAPACITY:
Workpiece diameter (min - max): ........................... 1.69" - 9.06"
Height of workpiece (min - max): .......................... 0.39" - 6.89"
Maximum load capacity robot arm: .......................... 55.12 lbs / 77.16 lbs
Maximum total weight on rotating table: ................... 2789 lbs
Maximum stacking height: .................................. 13.77"
Number of stacking stations (1 empty): .................... 12
Maximum weight per station: ............................... 253.53 lbs
Max. number of workpieces at workpiece height of 10 mm: ... 385
Max. number of workpieces at workpiece height of 20 mm: ... 187
Max. number of workpieces at workpiece height of 50 mm: ... 77
Max. number of workpieces at workpiece height of 70 mm: ... 55
Max. number of workpieces at workpiece height of 85 mm: ... 44
Max. number of workpieces at workpiece height of 110 mm: .. 33
Max. number of workpieces at workpiece height of 150 mm: .. 22
DIMENSIONS:
Length: ................................................... 68.89"
Width: .................................................... 56.45"
Height: ................................................... 87.4"
Total weight: ............................................. 2667 lbs / 2689 lbs
