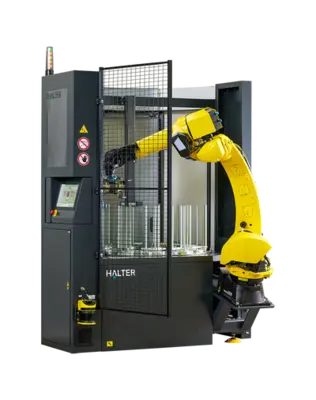

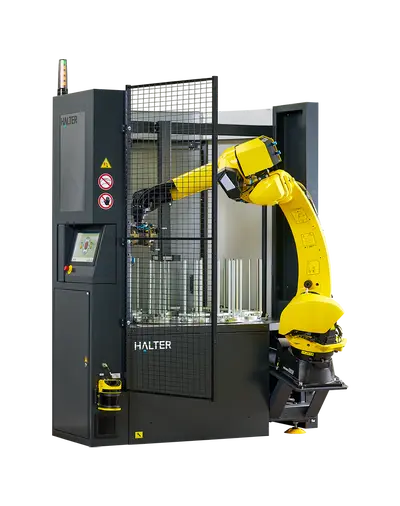

The MillStacker Premium 25/35 is a loading robot for milling with a high buffer capacity for workpieces up to 280 mm.
• For milling

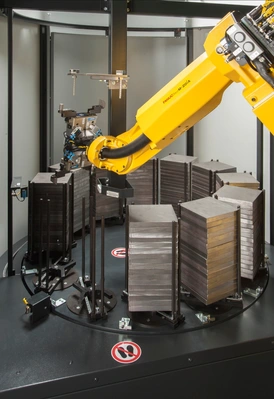

• High capacity due to stacking function for workpieces up to 280 mm
• Set-up time of less than 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• Minimum floor space
• With a 25 or 35 kg robotarm
• Many extra functionalities
Minimum workpiece (L x W): ................................ 1.57" x 1.57"
Maximum square workpiece (L x W): ......................... 7.08" x 7.08"
Maximum rectangle workpiece (L x W): ...................... 3.54" x 11.02"
Height of workpiece (min - max): .......................... 0.39" x 6.88"
Maximum load capacity robot arm: .......................... 55.12 lbs / 77.16 lbs
Maximum total weight on rotating table: ................... 2789 lbs
Maximum stacking height: .................................. 13.77"
Number of stacking stations (1 empty): .................... 12
Maximum weight per station: ............................... 253 lbs
Max. number of workpieces at workpiece height of 10 mm: ... 385
Max. number of workpieces at workpiece height of 20 mm: ... 187
Max. number of workpieces at workpiece height of 50 mm: ... 77
Max. number of workpieces at workpiece height of 70 mm: ... 55
Max. number of workpieces at workpiece height of 85 mm: ... 44
Max. number of workpieces at workpiece height of 110 mm: .. 33
Max. number of workpieces at workpiece height of 150 mm: .. 22
DIMENSIONS:
Length: ................................................... 1750 mm
Width: .................................................... 1434 mm
Height: ................................................... 2220 mm
Total weight: ............................................. 1210 kg / 1220 kg
