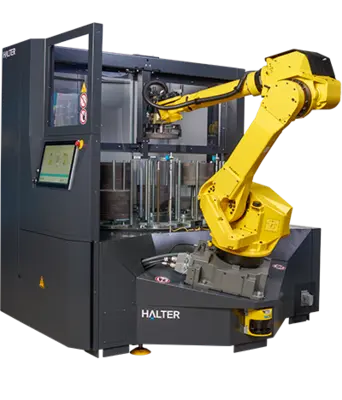

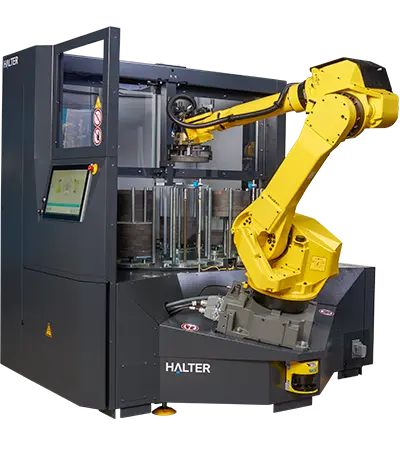

HALTER MILLSTACKER BIG 35/70 - Loading robot with stacking function for milling machines
ConditionNew
New
The MillStacker Big 35/70 is a loading robot for milling with a high buffer capacity for workpieces up to 400 mm.
• For milling
• For loading heavy workpieces
• High capacity due to stacking function for workpieces up to 400 mm
• Set-up time of less than 5 minutes
• Preparing new batch while the robot is running
• Machine access is maintained
• With a robot arm of 35 or 70 kg
• Many extra functionalities
Minimum workpiece (L x W): ................................ 1.57" x 1.57"
Maximum square workpiece (L x W): ......................... 9.84" x 9.84"
Maximum rectangle workpiece (L x W): ...................... 3.93" x 15.74"
Height of workpiece (min - max): .......................... 0.39" - 8.85"
Maximum load capacity robot arm: .......................... 77.16 lbs / 154.32 lbs
Maximum total weight on rotating table: ................... 6063 lbs
Maximum stacking height: .................................. 17.71"
Number of stacking stations (1 empty): .................... 12
Maximum weight per station: ............................... 551 lbs
Max. number of workpieces at workpiece height of 10 mm: ... 495
Max. number of workpieces at workpiece height of 20 mm: ... 242
Max. number of workpieces at workpiece height of 50 mm: ... 99
Max. number of workpieces at workpiece height of 70 mm: ... 66
Max. number of workpieces at workpiece height of 85 mm: ... 55
Max. number of workpieces at workpiece height of 110 mm: .. 44
Max. number of workpieces at workpiece height of 150 mm: .. 33
Max. number of workpieces at workpiece height of 225 mm: .. 22
DIMENSIONS:
Length: ................................................... 110.23"
Width: .................................................... 88.58"
Height: ................................................... 87.4"
Total weight: ............................................. 5789 lbs / 6472 lbs
