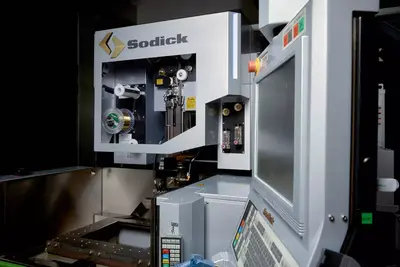

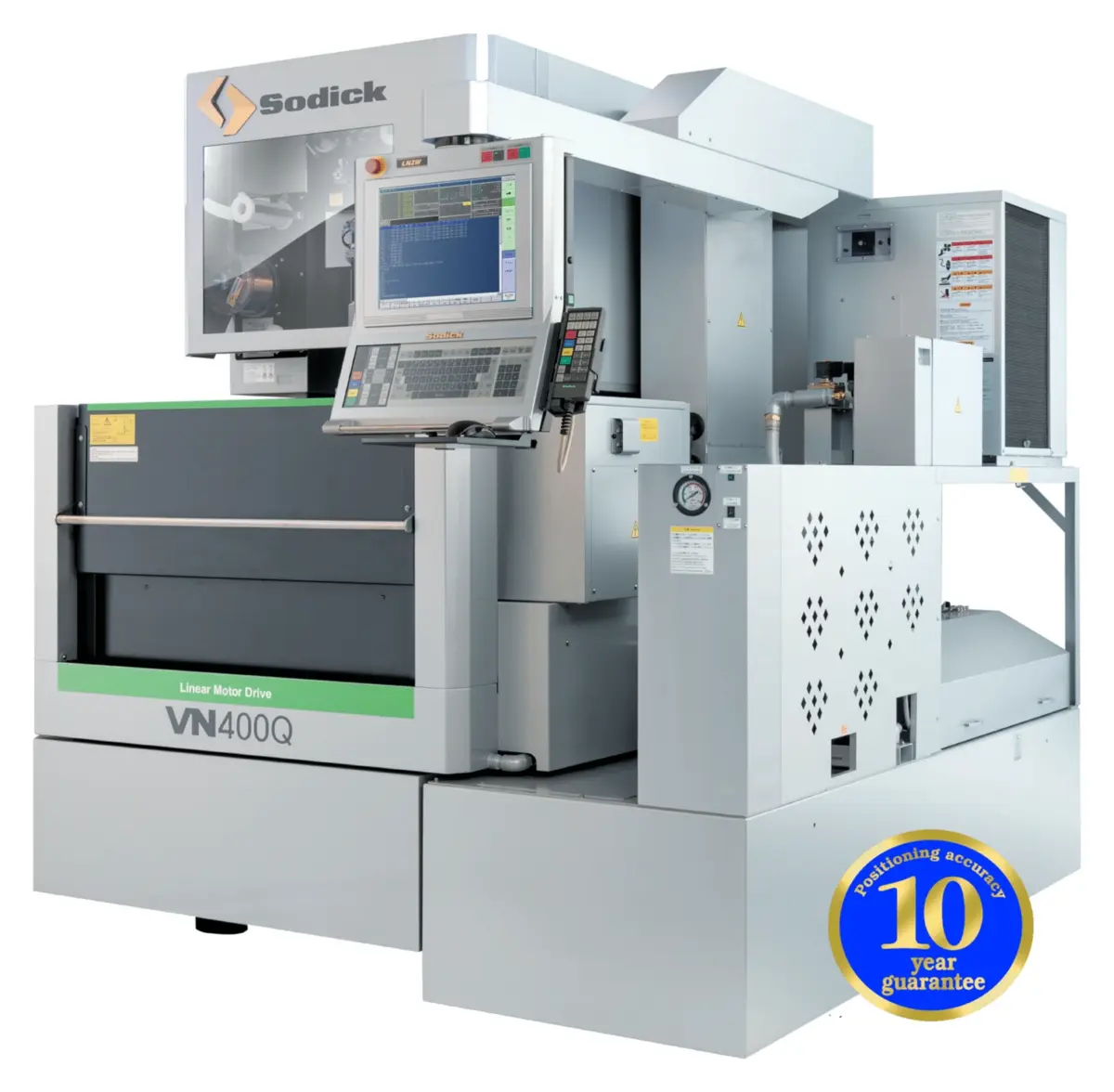

The VN400Q Wire EDM Machine is a small sized, advanced-performance machine with an upgraded AWT and improved finish.
The VN400Q Wire EDM features Sodick’s Linear Motor Technology. The VN Series is an advanced line of performance Wire EDM. The medium sized VN400Q is well-suited for a wide range of machining applications.
Features
• 10-Year Positioning Guarantee
• Linear Motor Drives (X, Y, U, and V axes)
• Glass Scale Feedback (X, Y, U, and V)

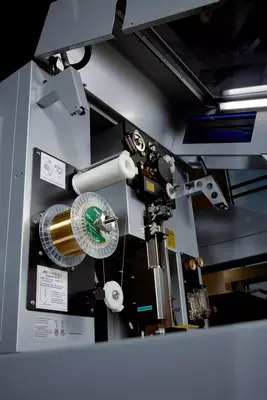

• Fixed Jet High Speed AWT
• Improved Surface Finish Circuit
• Ceramic Components
• Wire Tip Disposal Unit
• Z Axis Automatic Dielectric Fluid Level Control
• Advanced Tension Servo Control
• FTII (Precision Pick-Up Function)
• High Speed Electrolysis-Free Power Supply
• USB and LAN Connection Port
• Remote Hand Control and Mouse
• Energy Saving Circuit
• Dielectric Cooling Unit
• Built-In Voltage Stabilizer
• Motion Controller
• On-Board, User-Friendly Heart NC Software
X - Axis Travel 15.75" (400 mm)
Y - Axis Travel 11.81" (300 mm)
Z - Axis Travel 9.06" (230 mm)
U, V - Axis Travel 3.54" x 3.54" (90 x 90 mm)
Wire Diameter Range (min ~ max) 0.004” ~ 0.012” (0.10 ~ 0.30 mm)
Work Tank Inner Dimensions W x D 33.85" x 27.16" (860 x 690 mm)
Max. Workpiece Weight 1,102 lbs (500 kg)
Distance from Floor to Table Top 35.43” (900 mm)
Machine Tool Dimensions W x D x H 79.52" x 90.94" x 78.35" (2,020 x 2,310 x 1,990 mm)
Machine Weight 5,952 lbs (2,700 kg)
