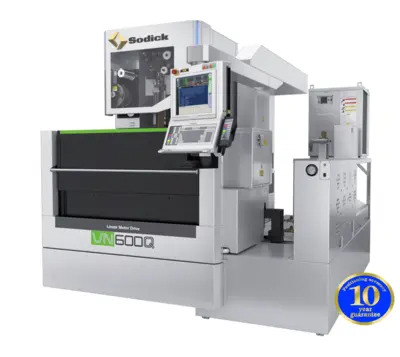

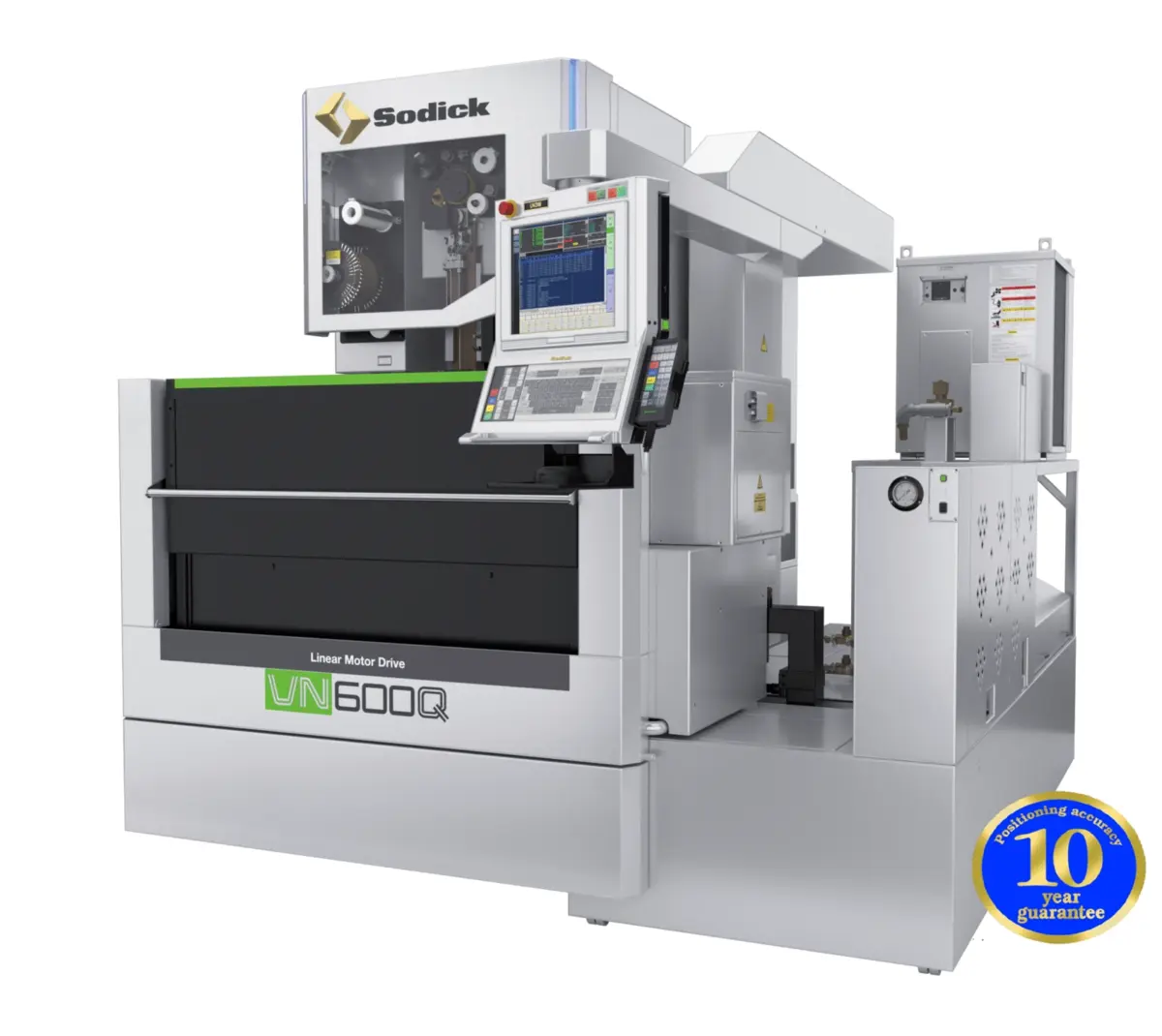

The VN600Q is an advanced line of wire EDMs that features improved finishing circuitry and an upgraded Automatic Wire Threader (AWT).
The VN600Q Wire EDM features Sodick’s Linear Motor Technology. The VN Series is an advanced line of performance Wire EDM. The large sized VN600Q is well-suited for a wide range of machining applications.
Features
• 10-Year Positioning Guarantee
• Linear Motor Drives (X, Y, U, and V axes)
• Glass Scale Feedback (X, Y, U, and V)
• Fixed Jet High Speed AWT
• Improved Surface Finish Circuit
• Ceramic Components
• Wire Tip Disposal Unit
• Z Axis Automatic Dielectric Fluid Level Control
• Advanced Tension Servo Control
• FTII (Precision Pick-Up Function)
• High Speed Electrolysis-Free Power Supply
• USB and LAN Connection Port
• Remote Hand Control and Mouse
• Energy Saving Circuit
• Dielectric Cooling Unit
• Built-In Voltage Stabilizer
• Motion Controller
• On-Board, User-Friendly Heart NC Software
X - Axis Travel 23.62” (600 mm)
Y - Axis Travel 15.75” (400 mm)
Z - Axis Travel 12.20" (310 mm)
U, V - Axis Travel 3.54" x 3.54" (90 x 90 mm)
Wire Diameter Range (min ~ max) 0.004” ~ 0.012” (0.10 ~ 0.30 mm)
Work Tank Dimensions W x D 40.94" x 30.71” (1040 x 780 mm)
Max. Workpiece Weight 1,874 lbs (850 kg)
Distance from Floor to Table Top 36.61” (930 mm)
Machine Tool Dimensions W x D x H 103.15" x 102.56" x 81.89" (2,620 x 2,605 x 2,080 mm)
Machine Weight 7,275 lbs (3,300 kg)
