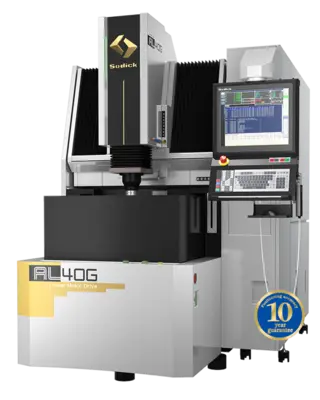

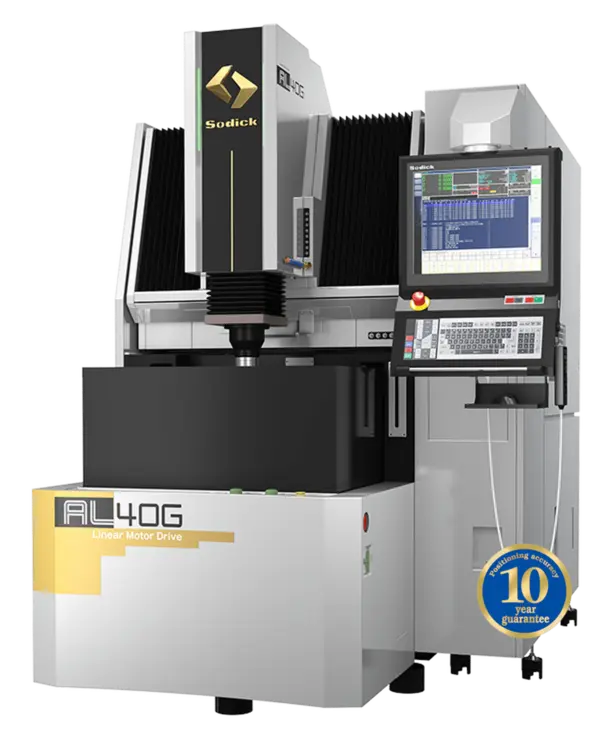

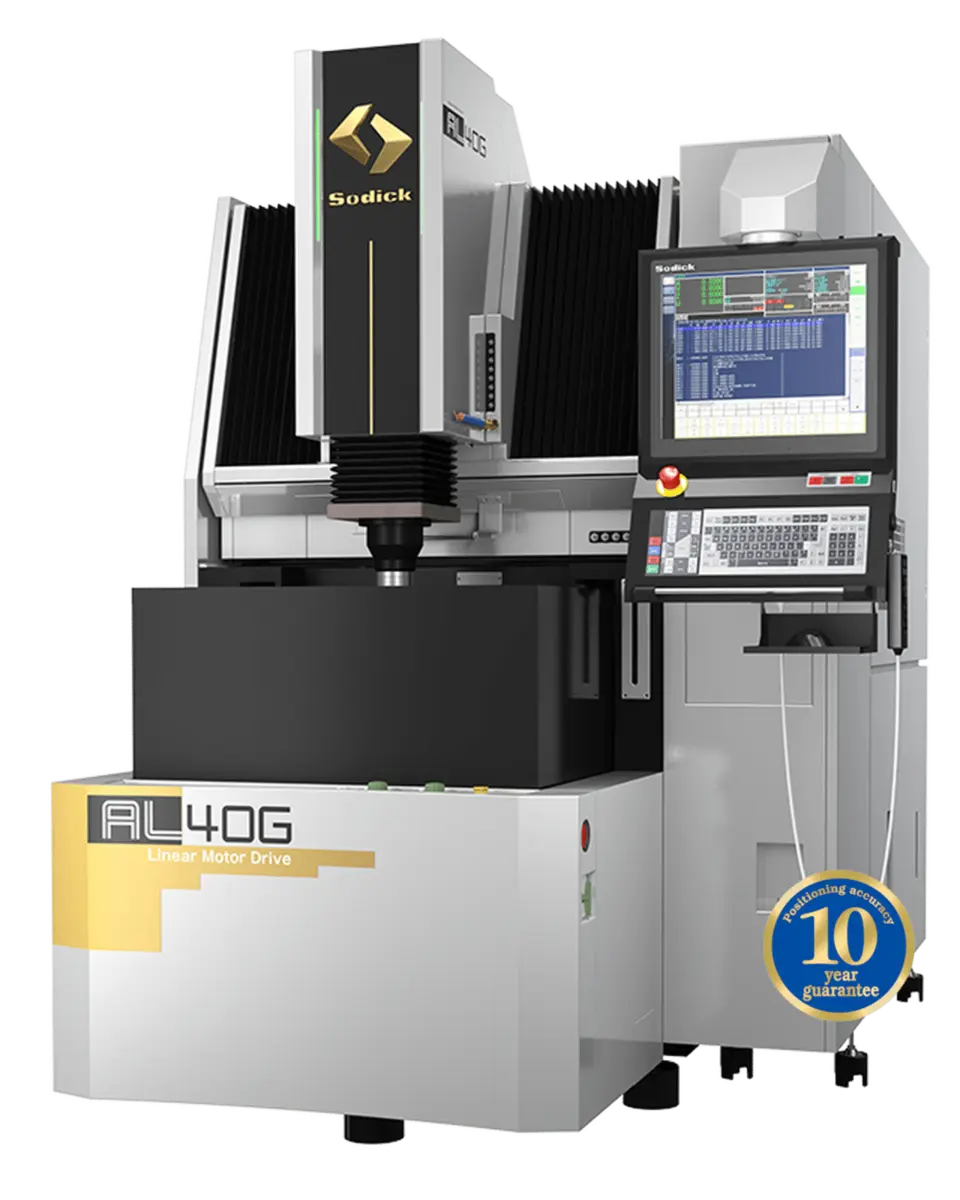

The AL40G, flat rigid linear motor drive die-sinker EDM which incorporates Sodick’s new generation SP controller with the Smart Pulse generator
The AL40G is a high performance Rigid Linear Motor driven CNC EDM enhanced with the latest artificial intelligence (AI).
Features
• Rigid Linear Motor Drives (X/Y/Z axis)
• 10-year guarantee on positioning accuracy
• Ceramic Structures
• Dielectric Cooling System

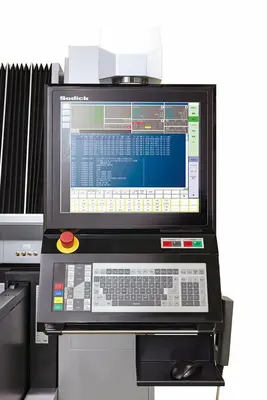

• 19″ Color Touch Screen
• High Speed SP Power Supply
• LN Professional AI Programming Software

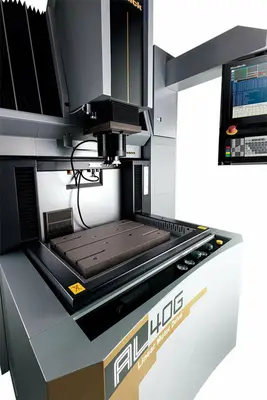

• 3-Side Drop Tank
X - Axis Travel 15.75" (400 mm)
Y - Axis Travel 11.81" (300 mm)
Z - Axis Travel 10.63" (270 mm)
Table Dimensions W x D 23.62" x 15.78" (600 x 400 mm)
Work Tank Dimensions W x D 29.52" x 24.41" x 13.75" (750 x 620 x 350 mm)
Max. Workpiece Weight 1,212 lb. (55 kg.)
Machine Dimensions 65.94" x 102.36" x 90.55" (1,675 x 2,600 x 2,330 mm)
Machine Installation Dimensions W x D 99.41" x 139.17" (2525 x 3,535 mm)
Machine Weight 9,039 lb. (4,100 kg.)
Total Power Input 3-phases, 50/60 Hz, 17 KvA
