The AL60G, flat rigid linear motor drive die-sinker EDM which incorporates Sodick’s new generation SP controller with the Smart Pulse generator is now available in the Sodick product range.

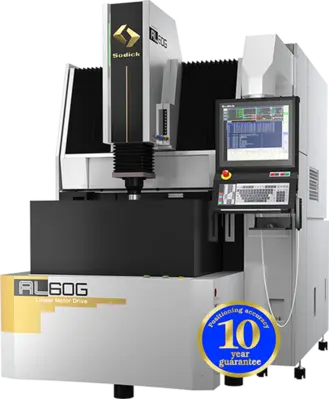

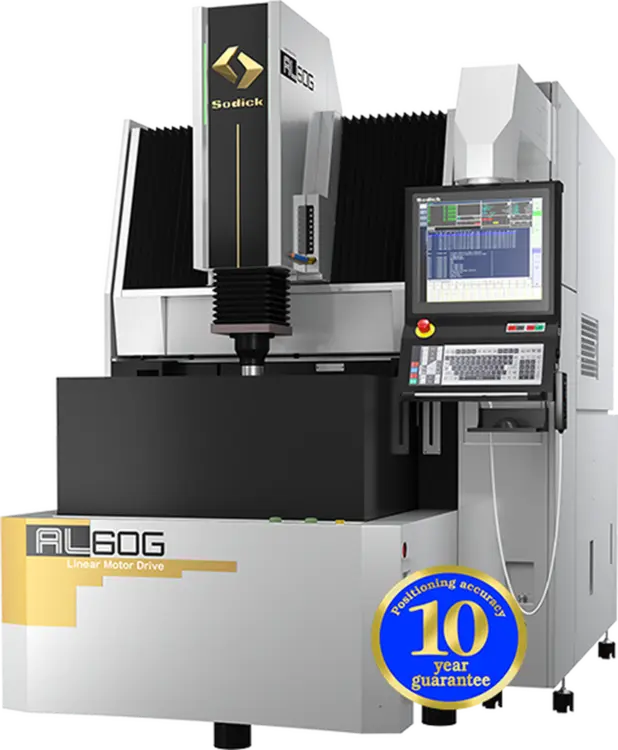

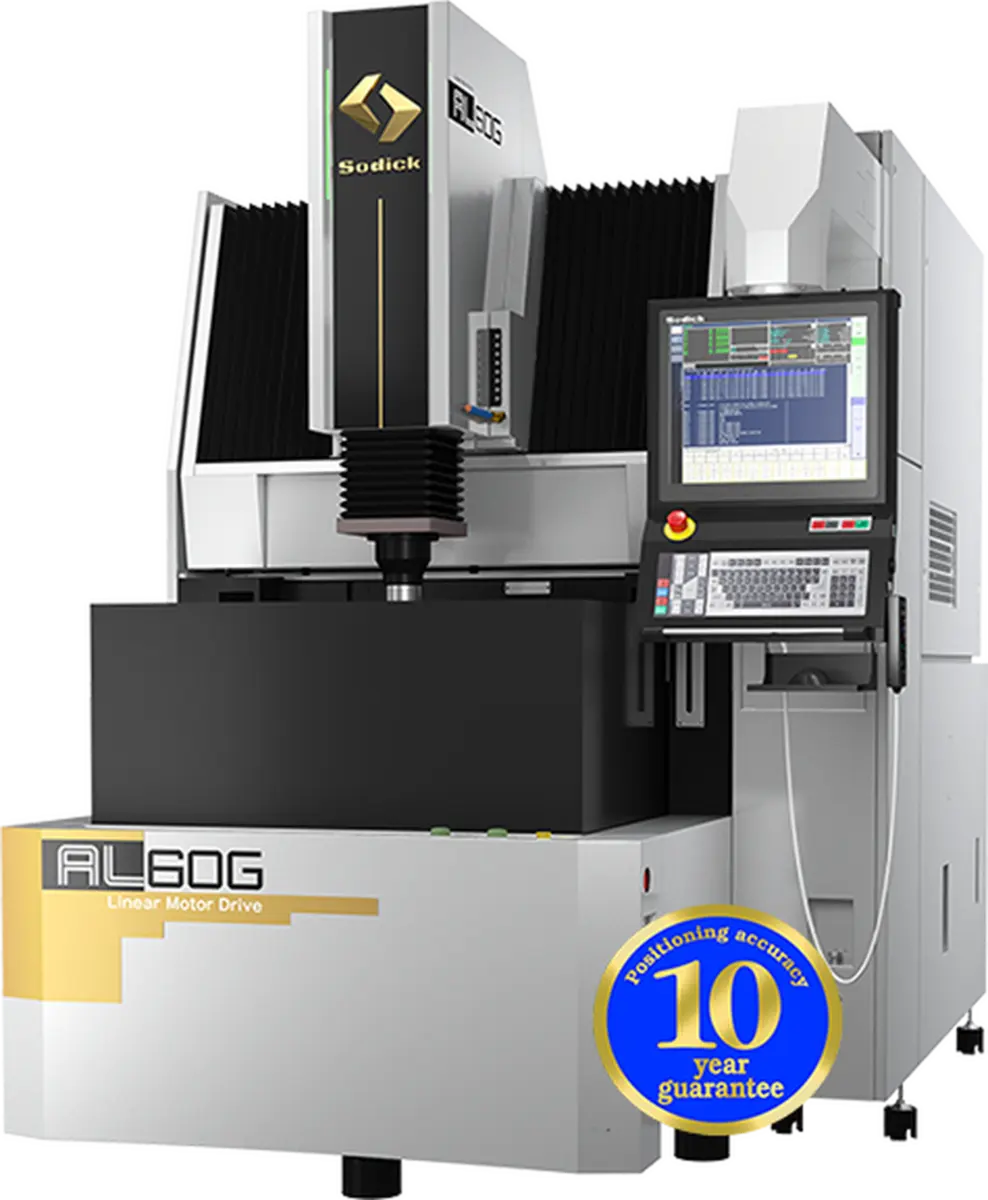

The Sodick AL60G is a high performance Rigid Linear Motor driven CNC Sinker EDM enhanced with the latest artificial intelligence (AI).
Features
• Rigid Linear Motor (X, Y, Z axis)
• 10-year positioning Guarantee
• Ceramic Structures
• Dielectric Cooling System

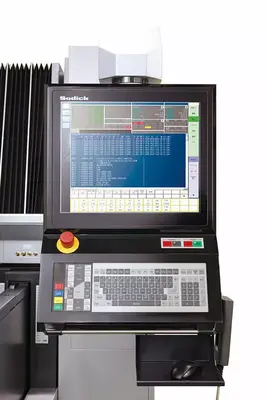

• 19″ Color Touch Screen
• High Speed SP Power Supply
• LN Professional AI Programming Software
• 3-Sided Drop Tank
X - Axis Travel 23.62" (600 mm)
Y - Axis Travel 16.54" (420 mm)
Z - Axis Travel 14.57" (370 mm)
Table Dimensions W x D 29.53" x 21.65" (750 x 550 mm)
Work Tank Dimensions W x D 37.40" x 29.13" x 17.72" (950 x 740 x 450 mm)
Max. Workpiece Weight 3,307 lb. (1,500 kg.)
pa_max-weight-of-electrode-kg
Machine Dimensions 73.82" x 115.35" x 101.18" (1,875 x 2,930 x 2,570 mm)
Machine Installation Dimensions W x D 102.36" x 151.57" (2,600 x 3,850 mm)
Machine Weight 11,794.73 lb. (5,350 kg.) • 11,795" lb. (5,350 kg.)
Total Power Input 3-phases, 50/60 Hz, 17 KvA
