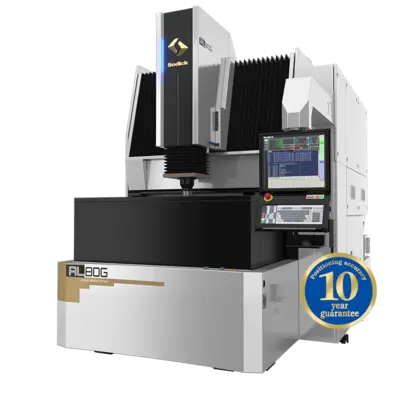

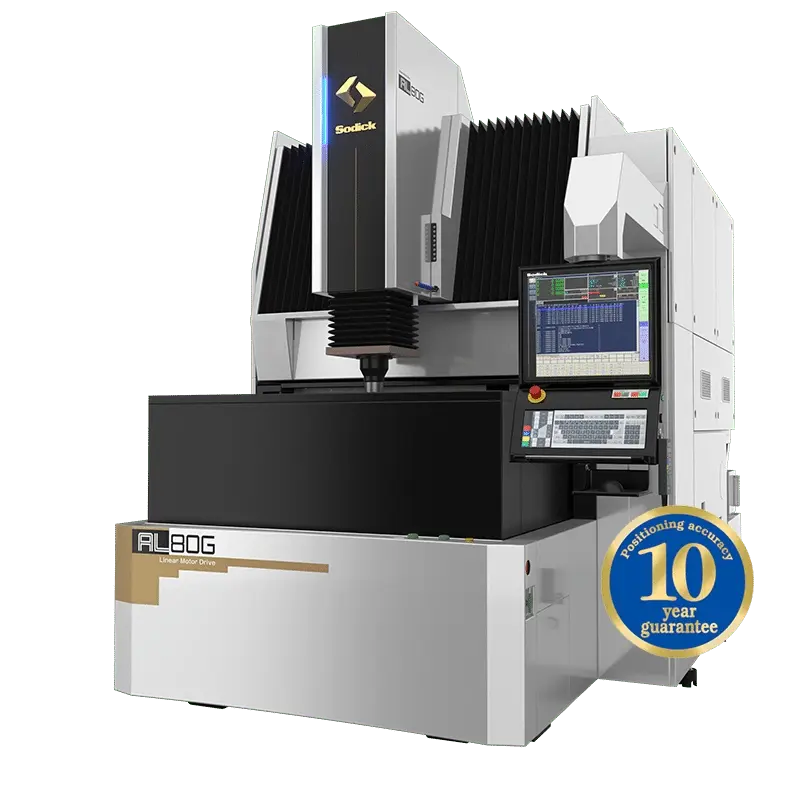

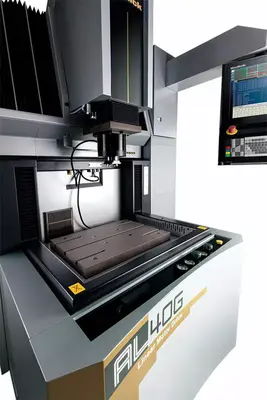

The AL80G, flat rigid linear motor drive die-sinker EDM which incorporates Sodick’s new generation SP controller with the Smart Pulse generator is now available in the Sodick product range.
The new model features Sodick’s advanced technologies and latest innovation to realize unrivaled machining performance.
Features
• 10-year guarantee on positioning accuracy
• Linear Motor (X/Y/Z axis)
• Absolute Linear scale (X/Y/Z axis)
• Ceramic components
• Sodick Motion Controller
• Linear motor cooling unit
• Dielectric fluid cooling unit
• SVC circuit
• “SGF4” Nano-Wear Discharge Unit
• TMM4
• BSN4 finishing circuit
• SP controller

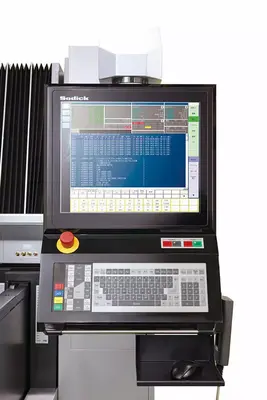

• 19″ TFT color screen
• Intelligent Q³vic EDM
• Remote controller
• LN Professional AI software for optimum condition search
• 3-side Rise and fall woank
• Clamping chuck
• LAN interface
• USB port
• Totalising hour metre
• Work light
X - Axis Travel 33.46″ (850 mm)
Y - Axis Travel 20.47″ (520 mm)
Z - Axis Travel 16.53″ (420 mm)
Table Dimensions W x D 43.31" x 27.56" (1,100 x 700 mm)
Work Tank Dimensions W x D 55.12" x 37.40" x 19.69" (1,400 x 950 x 500 mm)
Max. Workpiece Weight 6,614 lb (3,000 kg)
Max. Weight of Electrode 220 lb (100 kg)
Machine Dimensions 84.65" x 129.92" x 114.17" (2,150 x 3,300 x 2,900 mm)
Machine Installation Dimensions W x D 122.04" x 179.92" (3,100 x 4,570 mm)
Machine Weight 21,605 lb (9,800 kg)
Total Power Input 3-phases, 50/60 Hz, 17 KvA
Controlled Axes 4
